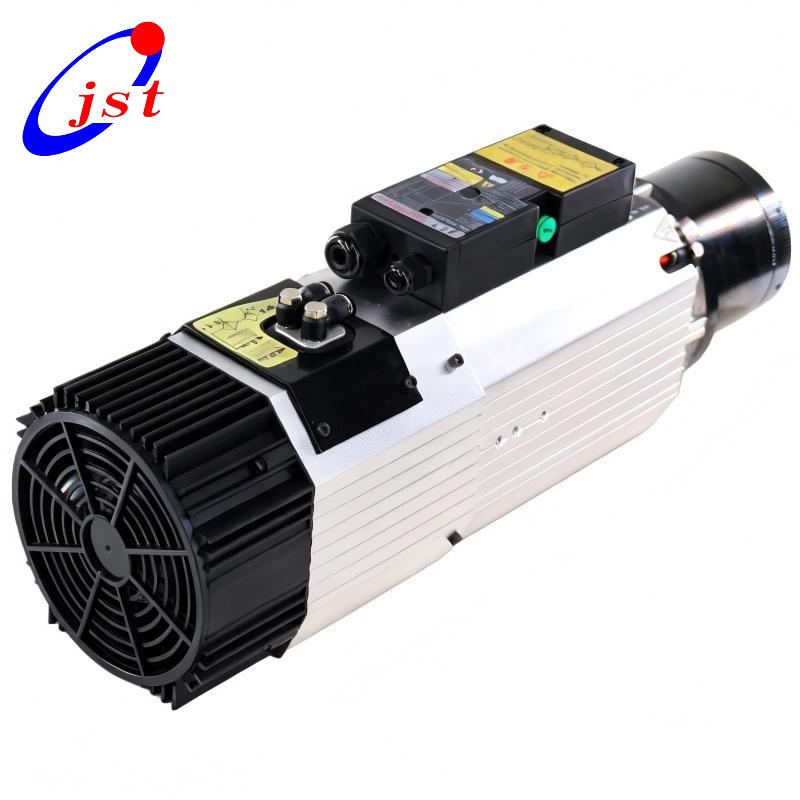

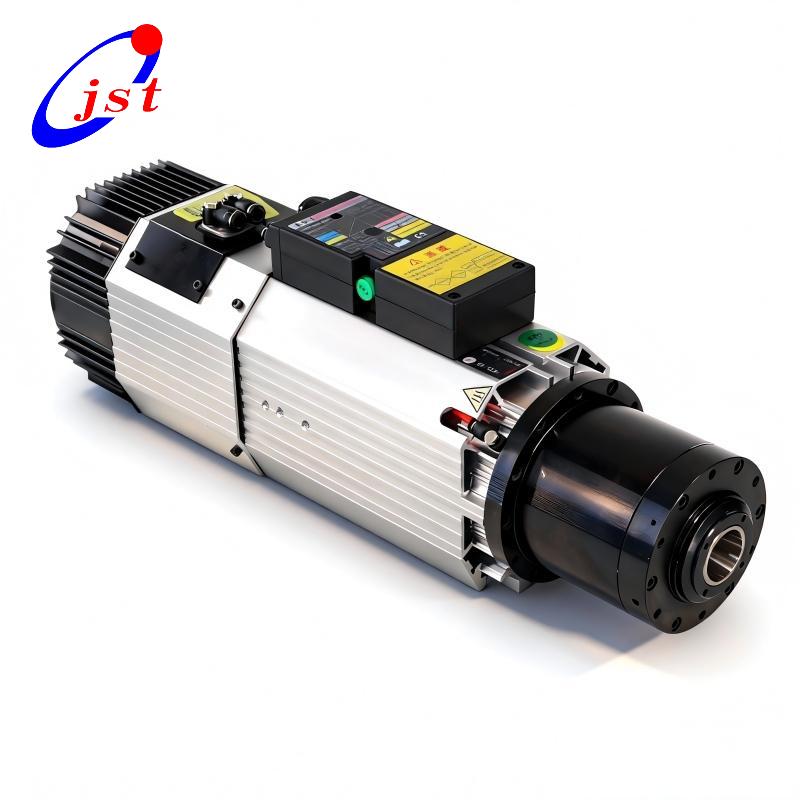

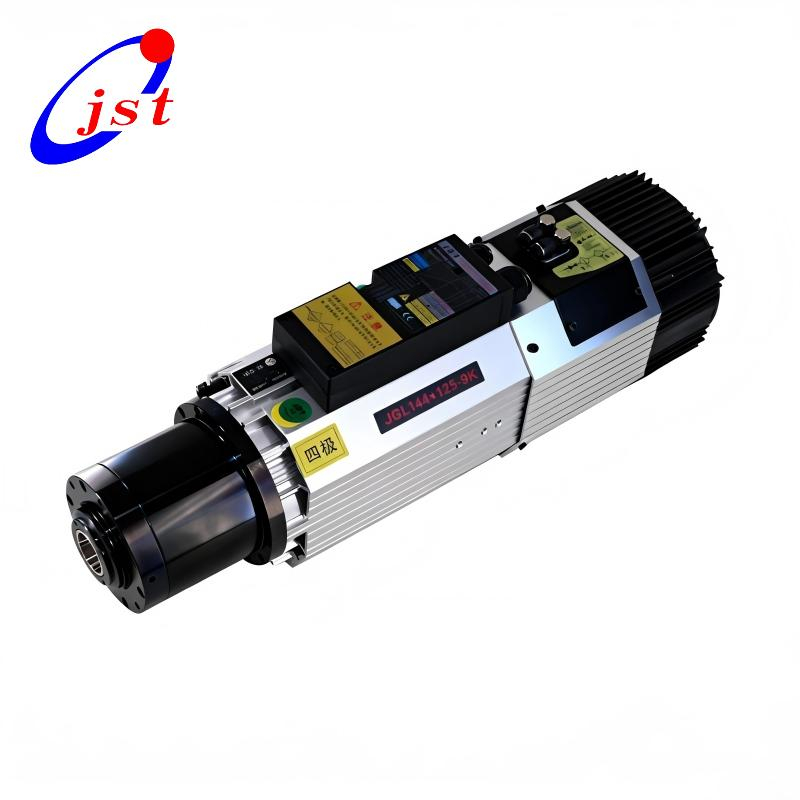

The 9.0 KW air-cooled automatic tool change (ATC) spindle motor with ISO30 interface from JST delivers high speed, precision, and reliable performance for CNC routers, machining centers, woodworking machines, and industrial automation applications.
Built with an efficient air cooling system and robust design, this CNC spindle is ideal for wood cutting, aluminum milling, engraving, and batch production.
As a professional electric spindle manufacturer & supplier, JST offers OEM customization, global shipping, and engineering support.
JGLF71-30-24Z/9
JST
220V/380V
400-800HZ
12000-24000RPM
ISO30
| Quantity: | |
|---|---|
Product Description
Rated power: 9.0 kW, ideal for demanding CNC machining
Stable torque and high cutting capacity
Excellent performance in routing, milling, and heavy engraving
Air-cooled design eliminates need for water chillers
Lower maintenance than water-cooled spindles
Reliable for long working hours and industrial environments
Reduced operating cost
Seamless automatic tool change system
Improves throughput and efficiency
Perfect match for CNC routers & machining centers
Reduces manual intervention & downtime
Standard ISO30 tool holder for broad tool compatibility
High rigidity and excellent repeatability
Compatible with most CNC magazines & fixtures
| Specification | Details |
|---|---|
| Model | JGLF71-30-24Z/9 |
| Power | 9.0 KW |
| Cooling | Air-Cooled |
| Interface | ISO30 |
| Speed Range | 12,000 — 24,000 RPM |
| Voltage | 380V / 220V |
| Frequency | 400–800Hz |
| Bearings | High Precision / Low Vibration |
| Runout | ≤ 0.003 mm |
| Net Weight | 31 kg |
| Applications | CNC Router, Milling, Engraving |

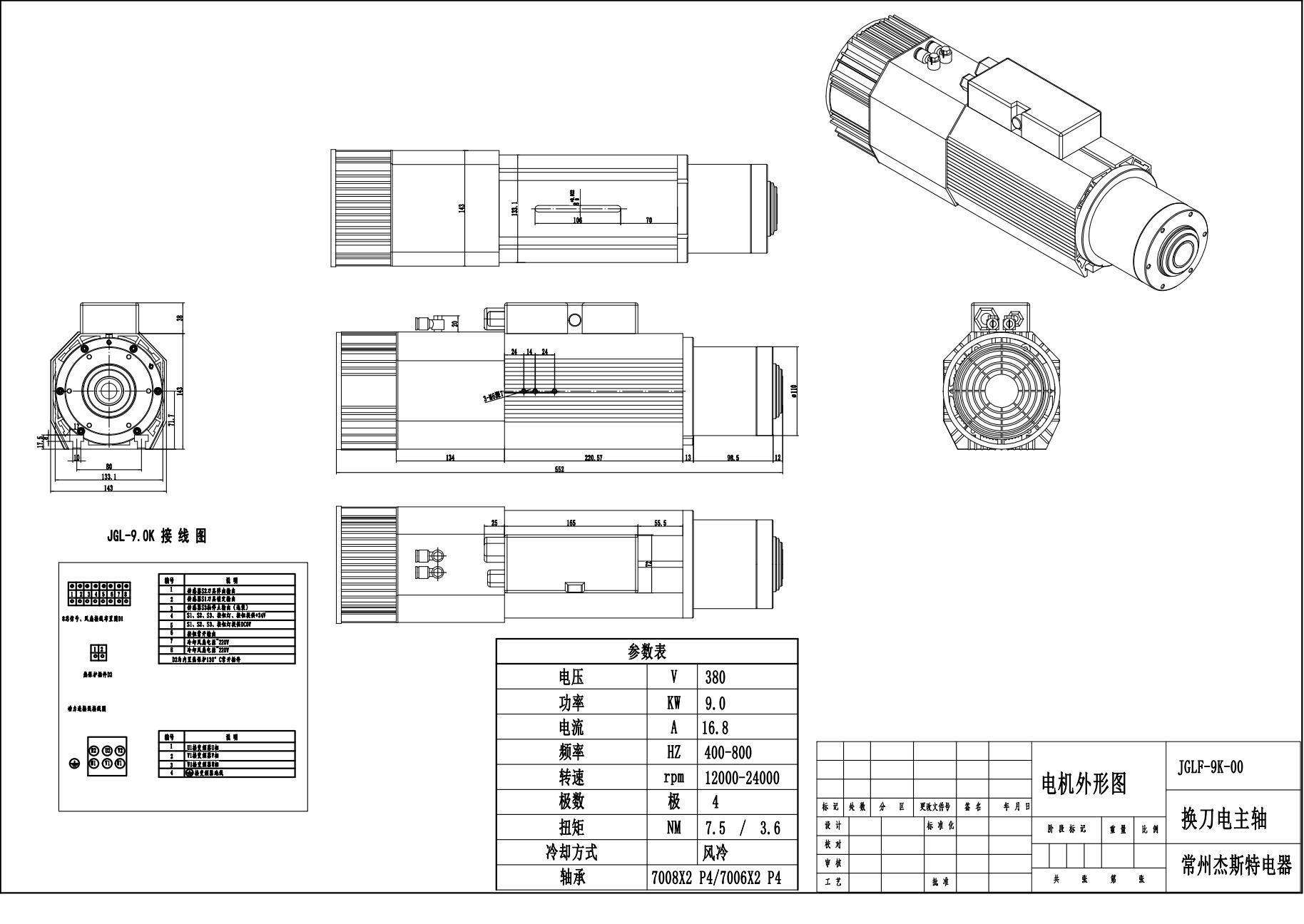

JST-9KW air cooled ATC spindle motor.pdf
Furniture panel cutting
Engraving and carving
MDF, plywood, hardwood processing
Aluminum profile milling
Plastic & composite material routing
Multi-axis CNC systems
Automatic production lines
High-throughput machining tasks
Professional electric spindle manufacturer with years of experience
Stable quality and component traceability
ISO quality control and performance testing
Custom interface (BT30 / ISO30 / ER Collet)
Custom power, speed, voltage options
OEM solutions for machine builders
Exported worldwide: Europe, America, Asia, Middle East…
Local language sales support
After-sales and technical assistance
3 times longer working life(2 years for 8 hours/day).
12 times precision Runout off less than 0.003mm beyond average spindle motor.
Very easy and fast to assemble.
Keep air intake clean
Ensure adequate ventilation
Use matched cooling fans for best performance
Use compatible VFD / inverter
Recommended frequency range: 600–800Hz
Warm-up at low RPM before heavy cutting
CE certification
EMC certification
LVD certification
quality certification
ROHS certification
UKCA certification
JST Company Outside
JST Workshop
JST Workshop
JST Workshop
JST Equipments
JST Equipments
Packing
Packing
Packing
Packing
Packing
This 9.0 kW ATC spindle motor is designed for CNC routers, CNC milling machines, and machining centers used in woodworking, aluminum cutting, and so on.
An air-cooled ATC spindle motor does not require a water chiller or cooling pipes, offering easier installation and lower maintenance compared to a water-cooled CNC spindle.
A VFD compatible with 9.0 kW CNC spindle motors and the correct voltage (220V or 380V) is recommended to ensure stable speed control and reliable operation.
The maximum speed of this 9.0 kW air-cooled ATC spindle motor is typically up to 24,000 RPM, suitable for high-speed CNC machining and engraving.
Yes. This industrial ATC spindle motor is designed for continuous operation with stable performance, precision bearings, and reliable air-cooling efficiency.
Air-cooled ATC spindle motors require minimal maintenance, mainly regular dust cleaning, airflow inspection, and periodic bearing checks to ensure long service life.
Every spindle motor has one year(12 months) warranty.
1.The electric spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor, and it will burn the spindle motor if the settings are not correct. (Therefore, the spindle motor must be connected to VFD at first.)
2.Before using water-cooled spindle motor, it shall ensure that cooling cycle system works normally. Please notice: the running under no cooling conditions is prohibited! The volume of cooling water is calculated as per 1 liter/minute, the minimum flow of cooling water is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.
3.The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30℃. The cooling medium shall carry out force cooling when the ambient temperature is higher than 30℃. The precision lathe requires the cooling liquid with a constant temperature of 20±2℃.
4.Important! The coolant temperature must be within 5℃ of the ambient temperature; ideally, the coolant temperature should be 5℃ lower than the ambient temperature. Otherwise, if the temperature difference is too large, condensation may form inside the electric spindle, leading to spindle damage.
5.If use water cooling machine, its temperature shall be within 22-25℃.
6.During storage and transport of the spindle motor, the status of high-speed grease inside the bearing will change. So, user shall run it at a low speed first by starting from the lowest speed of the spindle motor for 30 minutes and then 20 minutes for every 3000 rounds when they first time receiving spindle motors. Otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle motor is started directly at a high speed. During long term storage, the spindle motor shall run (at low speed) for 15-30 minutes once a week at least.
7.Before daily machining, the spindle motor shall be warmed up, run for 15-20 minutes when the machining speed is reached and then performs precise machining. It is better to stop the spindle motor for two hours every day in order to recover its mechanical fatigue and prolong its life time.
8.The spindle motor adopts vapor lock and the gas source shall not be used until it has passed oil-water separator and dry filter. The air pressure is 0.2-0.25Mpa and the filtering precision is 5μm, otherwise there will cause damages to the bearing. Therefore, a good oil-water separator is essential.
9.Collet, nut and inner taper hole shall be cleaned when installing blades on the spindle motor in order to avoid any impact on the precision. The blade handle shall be inserted into the collet more than 15mm.
10.No hammering the end cover of the spindle motor. No hammering the collet and blade head when removing blades. No shocking or colliding during transport, storage and using, especially pay attention to the end of the spindle motor.
11.The spindle motor shall run in designated direction. (We will indicate the direction with an arrow.)
12.The spindle motor shall be installed and fixed according to the relevant drawings and instructions.
Spindle motor is also called high-speed electric spindle motor, refers to the revolution of a more than 10000 RPM AC motor. It has the advantages of fast speed, small size, lightweight, low material consumption, low noise, and low vibration, mainly used in wood, aluminum, stone, hardware, glass, PVC, and other industries.
Due to its wide application and meticulous work, fast speed, and excellent processing quality, making another ordinary motor can not meet the technical requirements of the spindle motor. Spindle motor plays an important role in the industrial production process, so it is particularly popular all over the world.
