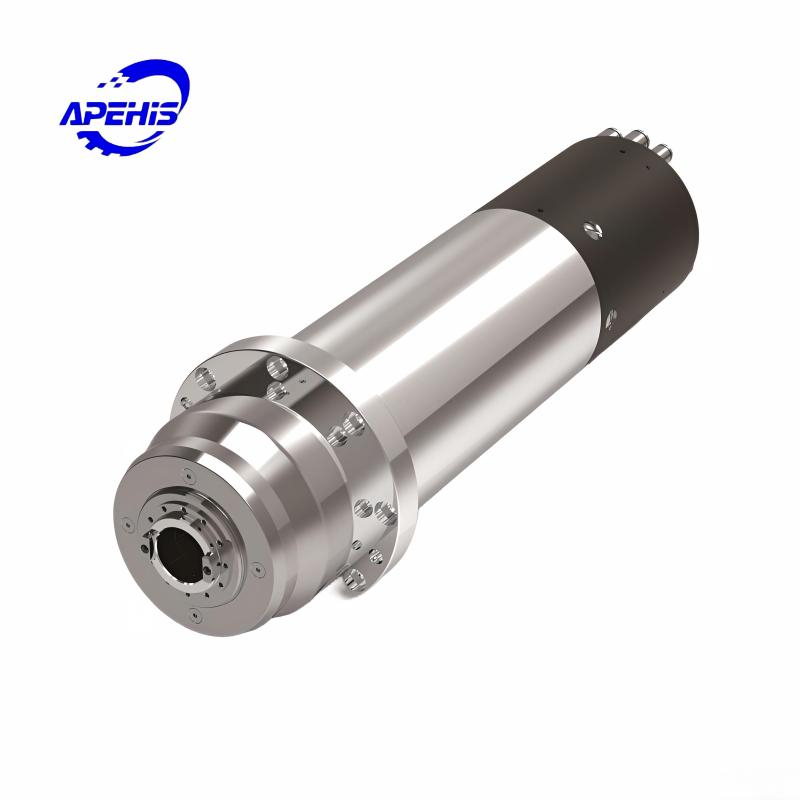

The APS120FY1-30-24Z/7.5KW Automatic Tool Change (ATC) CNC spindle motor is engineered for high-speed precision machining applications requiring exceptional rigidity, reliability, and productivity.
Max speed 18,000 RPM, Rated torque 12 Nm, and compatibility with BT30, BBT30, or HSK-E40 tool holders, this spindle is an ideal solution for CNC machining centers, engraving machines, milling equipment, mold manufacturing, aluminum machining, woodworking, composite processing, and precision industrial automation.
Featuring standard through-spindle coolant, multiple tool change options, and high-quality front four-bearing support, the APS120FY1-30-24Z/7.5KW offers the accuracy and durability demanded by modern CNC manufacturers.
APS120FY1-30-24Z/7.5KW
APS
300V/380V
300-900 HZ
6000-18000 RPM
BT30 / BBT30 / HSK-E40
| Quantity: | |
|---|---|
Product Description
The APS120FY1-30-24Z/7.5KW Automatic Tool Change (ATC) CNC spindle motor is engineered for high-speed precision machining
applications requiring exceptional rigidity, reliability, and productivity.
Max speed 18,000 RPM, Rated torque 12 Nm, and compatibility with BT30, BBT30, or HSK-E40 tool holders, this spindle is an ideal solution
for CNC machining centers, engraving machines, milling equipment, mold manufacturing, aluminum machining, woodworking, composite
processing, and precision industrial automation.
Featuring standard through-spindle coolant, multiple tool change options, and high-quality front four-bearing and rear two-bearing support,
the APS120FY1-30-24Z/7.5KW offers the accuracy and durability demanded by modern CNC manufacturers.
The efficient water cooling system offers significant advantages:
Stable operating temperature
Excellent heat dissipation
Longer bearing life
Reduced thermal expansion
Improved machining accuracy
Low operating noise
Perfect for continuous industrial production.
Available with:
BT30
BBT30
HSK-E40
All tool interfaces provide excellent concentricity, secure clamping force, and high repeatability for precision machining applications.
The spindle utilizes a Front 4 + Rear 2 bearing configuration, providing:
High radial stiffness
Excellent axial rigidity
Outstanding vibration resistance
Improved surface finish
Long service life
This optimized bearing system supports demanding machining conditions while maintaining high precision.
| Specification | Details |
|---|---|
| Model | APS120FY1-30-24Z/7.5KW |
| Power | 7.5 KW |
| Cooling Method | Water cooling |
| Tool Interface | BT30 / BBT30 / HSK-E40 |
| Speed Range | 6000-18000 RPM |
| Voltage | 300V/380V |
| Frequency | 300-900 Hz |
| Tool Change Method | Pneumatic/Mechanical/Hydraulic ATC |
| Runout | ≤ 0.001 mm |
| Max torque | 15.9 Nm |
| ATC Sensor | PNP/NPN |
| Encoder | (sin/cos wave)/square wave/new generation |
| Net Weight | 27 kg |
| Through-Spindle Coolant | standard equipment |

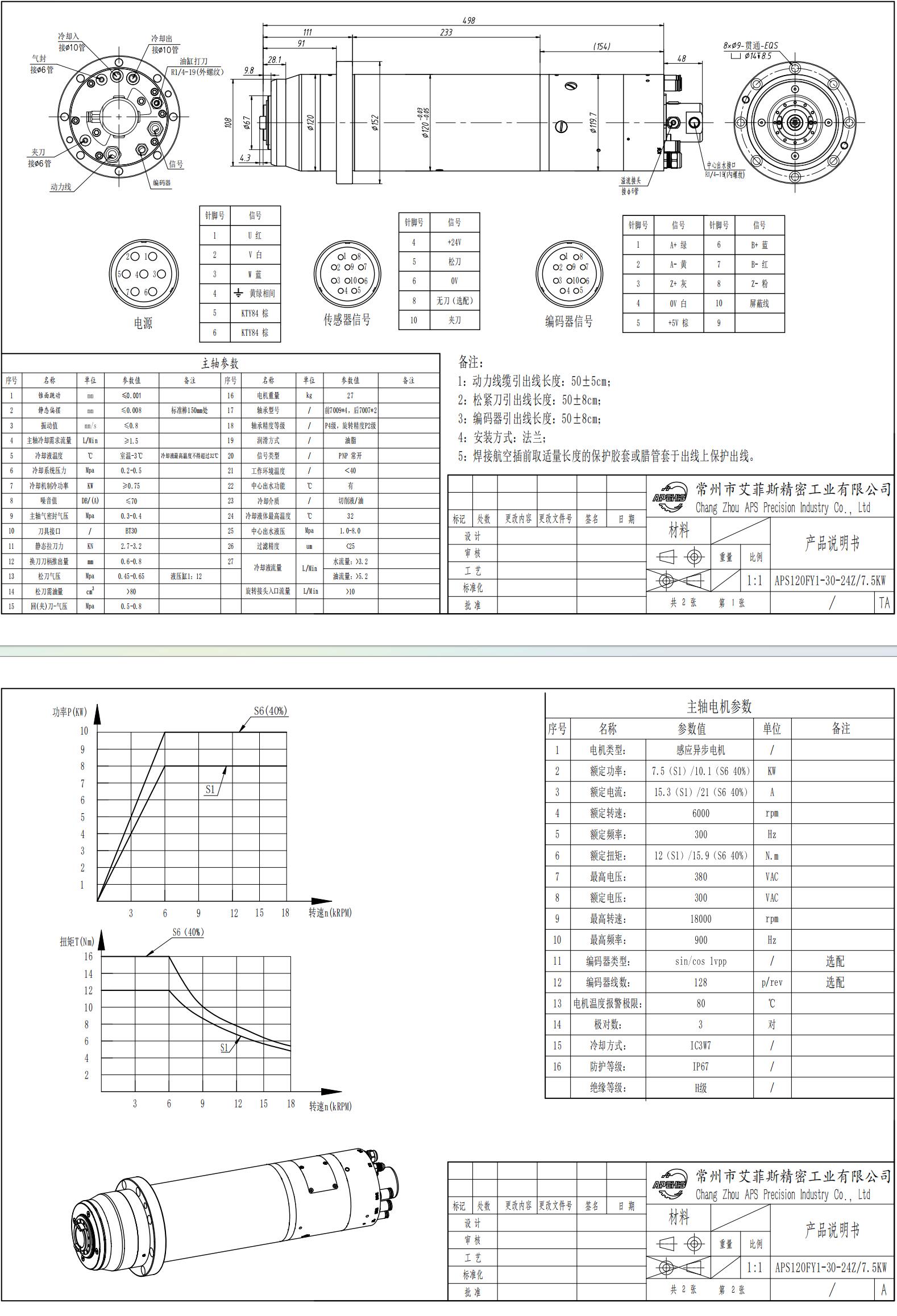

7.5kW TSC Water-Cooled ATC Spindle Motor, 120mm 18000 RPM, BT30 BBT30 HSK-E40, with flange.pdf
The spindle is widely used in:
CNC Vertical Machining Centers
High-Speed Milling Machines
Mold & Die Manufacturing
Aluminum Machining
Precision Metal Cutting
Graphite Processing
Composite Material Machining
Woodworking CNC Routers
Aerospace Components
Automotive Parts Manufacturing
Ideal for machining:
Aluminum
Brass
Copper
Engineering Plastics
Acrylic
MDF
Hardwood
Softwood
Carbon Fiber
Composite Materials
PVC
Foam
Non-ferrous Metals
Professional spindle manufacturer with extensive industry experience
Precision dynamic balancing for smooth operation
Strict quality inspection before shipment
High-quality bearing systems for long service life
Stable performance in demanding industrial environments
Competitive factory-direct pricing
Fast global delivery
Comprehensive OEM & ODM services
Responsive technical support for machine builders and distributors
Electrical Connection: Connect U, V, W phases and protective earth per wiring diagram.
Cooling: Connect water inlet/outlet hoses; ensure water pump flow is stable.
Air Supply: Provide regulated clean air (if pneumatic tool change/air seal needed).
ATC Sensor: Connect PNP or NPN sensor wiring to the CNC control tool changer interface.
(Manufacturer wiring diagram and installation manual should be followed strictly.)
Inner protective foam case.
Outer plywood shipping box.
Optional: Custom-branded packaging available.
CE certification
EMC certification
LVD certification
quality certification
ROHS certification
UKCA certification
JST Company Outside
JST Workshop
JST Workshop
JST Workshop
JST Equipments
JST Equipments
Packing
Packing
Packing
Packing
Packing
This spindle supports BT30 or BBT30 or HSK-E40 tool interfaces, providing flexibility for different CNC machine configurations.
Yes. This model the through-spindle coolant (TSC) system is standard equipment.
This spindle comes standard with pneumatic tool changing; please specify if you require mechanical or hydraulic tool changing when placing your order.
Yes. The efficient water cooling system and precision bearing arrangement are designed for long-term industrial operation under continuous production conditions.
Every spindle motor has one year(12 months) warranty.
Yes welcome warmly. No. 8 Hengcui Road, Henglin Town, Changzhou Economic Development Zone, Jiangsu Province, China.
1.The electric spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor, and it will burn the spindle motor if the settings are not correct. (Therefore, the spindle motor must be connected to VFD at first.)
2.Before using water-cooled spindle motor, it shall ensure that cooling cycle system works normally. Please notice: the running under no cooling conditions is prohibited! The volume of cooling water is calculated as per 1 liter/minute, the minimum flow of cooling water is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.
3.The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30℃. The cooling medium shall carry out force cooling when the ambient temperature is higher than 30℃. The precision lathe requires the cooling liquid with a constant temperature of 20±2℃.
4.Important! The coolant temperature must be within 5℃ of the ambient temperature; ideally, the coolant temperature should be 5℃ lower than the ambient temperature. Otherwise, if the temperature difference is too large, condensation may form inside the electric spindle, leading to spindle damage.
5.If use water cooling machine, its temperature shall be within 22-25℃.
6.During storage and transport of the spindle motor, the status of high-speed grease inside the bearing will change. So, user shall run it at a low speed first by starting from the lowest speed of the spindle motor for 30 minutes and then 20 minutes for every 3000 rounds when they first time receiving spindle motors. Otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle motor is started directly at a high speed. During long term storage, the spindle motor shall run (at low speed) for 15-30 minutes once a week at least.
7.Before daily machining, the spindle motor shall be warmed up, run for 15-20 minutes when the machining speed is reached and then performs precise machining. It is better to stop the spindle motor for two hours every day in order to recover its mechanical fatigue and prolong its life time.
8.The spindle motor adopts vapor lock and the gas source shall not be used until it has passed oil-water separator and dry filter. The air pressure is 0.2-0.25Mpa and the filtering precision is 5μm, otherwise there will cause damages to the bearing. Therefore, a good oil-water separator is essential.
9.Collet, nut and inner taper hole shall be cleaned when installing blades on the spindle motor in order to avoid any impact on the precision. The blade handle shall be inserted into the collet more than 15mm.
10.No hammering the end cover of the spindle motor. No hammering the collet and blade head when removing blades. No shocking or colliding during transport, storage and using, especially pay attention to the end of the spindle motor.
11.The spindle motor shall run in designated direction. (We will indicate the direction with an arrow.)
12.The spindle motor shall be installed and fixed according to the relevant drawings and instructions.
Spindle motor is also called high-speed electric spindle motor, refers to the revolution of a more than 10000 RPM AC motor. It has the advantages of fast speed, small size, lightweight, low material consumption, low noise, and low vibration, mainly used in wood, aluminum, stone, hardware, glass, PVC, and other industries.
Due to its wide application and meticulous work, fast speed, and excellent processing quality, making another ordinary motor can not meet the technical requirements of the spindle motor. Spindle motor plays an important role in the industrial production process, so it is particularly popular all over the world.
