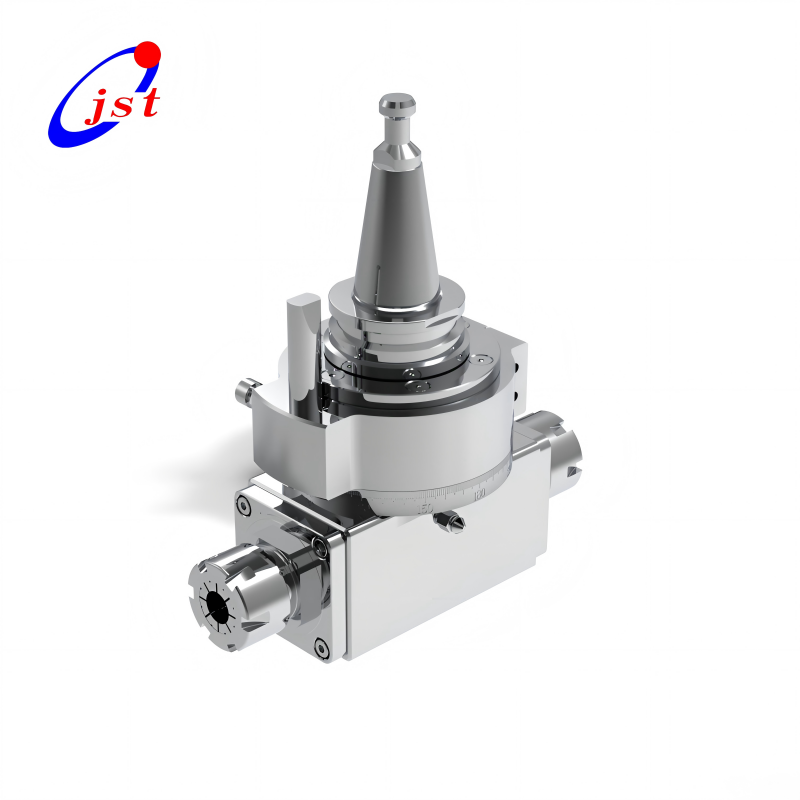

The JST JGJ30-25-2 Machining Center Side Milling Head is engineered for maximum flexibility and precision in your machining operations. With an adjustable tool rotation range from 0° to 360°, it provides versatility for various machining angles. This angle head one end interfacing with the spindle features an ISO30 tool holder design, while the other end is an ER25 collet used to clamp the tool, ensuring secure tool holding. It supports tool clamping diameters from 1mm to 16mm and operates at a maximum speed of 12,000 rpm, making it ideal for high-speed milling.
The angle head is designed to run at a temperature up to 70°C and is lubricated with grease for smooth operation and long-lasting performance. Especially good for woodworking.
JGJ30-25-2
JST
12000RPM
ISO30
ER25
| Quantity: | |
|---|---|

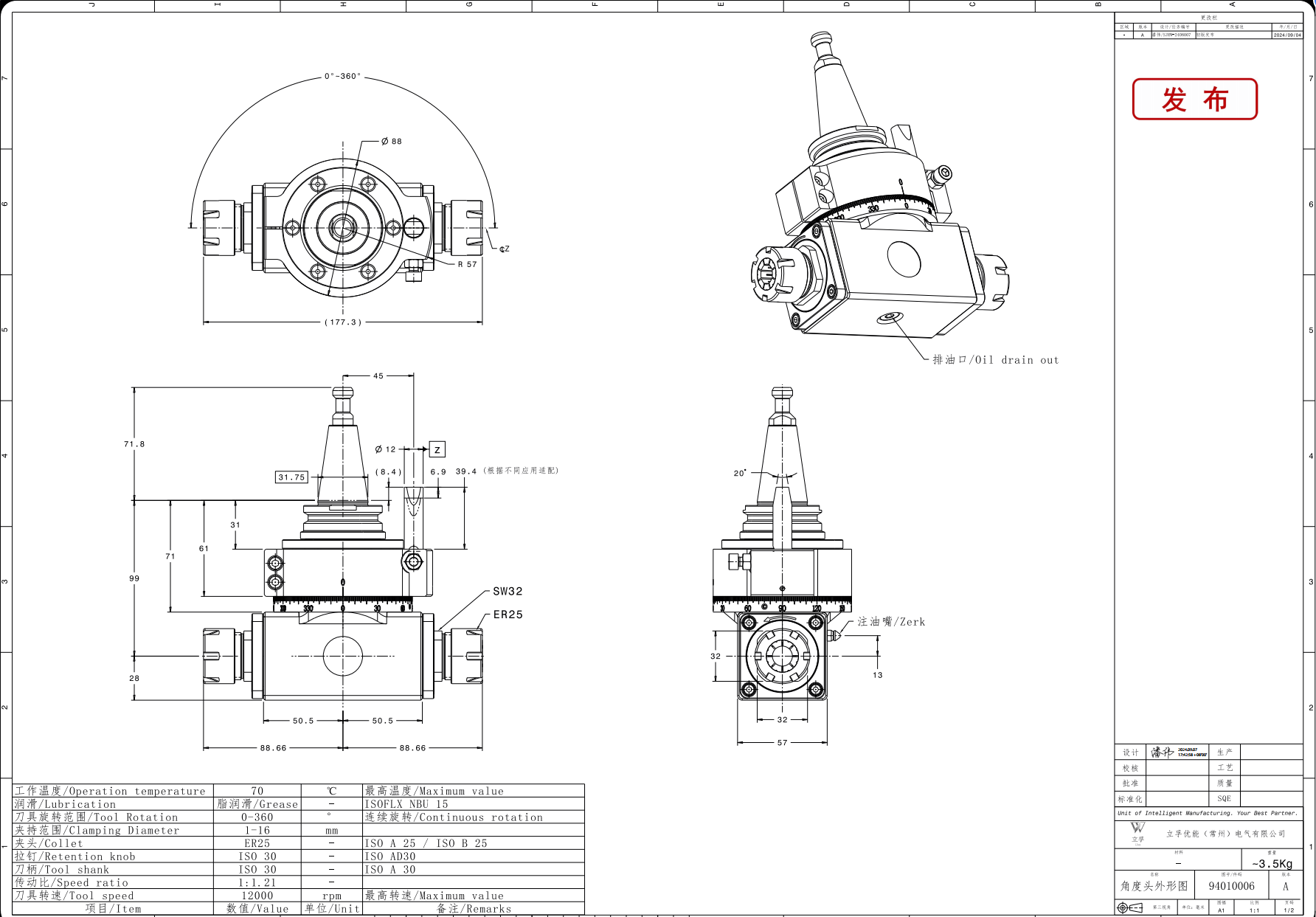

Product Description
The JST JGJ30-25-2 Machining Center Side Milling Head is engineered for maximum flexibility and precision in your machining operations. With an adjustable tool rotation range from 0° to 360°, it provides versatility for various machining angles. This angle head one end interfacing with the spindle features an ISO30 tool holder design, while the other end is an ER25 collet used to clamp the tool, ensuring secure tool holding. It supports tool clamping diameters from 1mm to 16mm and operates at a maximum speed of 12,000 rpm, making it ideal for high-speed milling.
The angle head is designed to run at a temperature up to 70°C and is lubricated with grease for smooth operation and long-lasting performance. Especially good for woodworking.
| Specification | Details |
|---|---|
| Model | JGJ30-25-2 |
| Max Operation Temperature | 70°C |
| Tool Rotation | 0° to 360° |
| Clamping Diameter | 1-16mm |
| Collet Type | ER25 |
| Retention Knob | ISO30 |
| Tool Shank | ISO30 |
| Speed Ratio | 1:1.21 |
| Max Tool Speed | 12,000 rpm |
| Weight | 3.5 kg |
| Lubrication | Grease |
