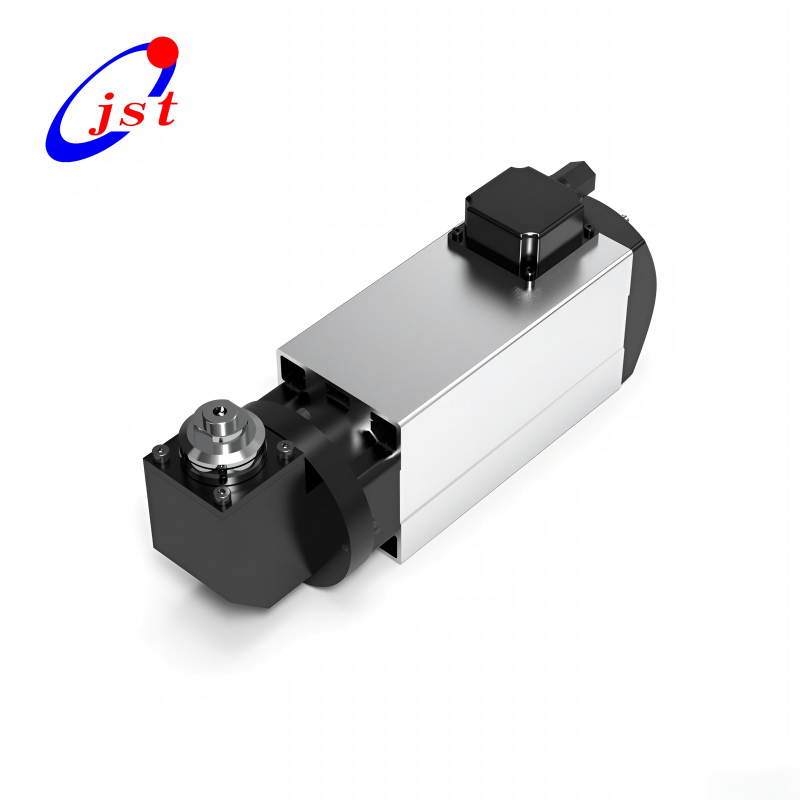

The JGFZ60-6Z/2.2 is a 2.2kW square air-cooled right angle motorized spindle designed for CNC equipment that requires a compact spindle configuration and reliable machining performance.
Its right-angle structure allows the spindle to be integrated into equipment where a conventional straight spindle may not be suitable. The square housing also provides a practical mounting form for OEM machine builders and automation equipment manufacturers.
With a 6,000 RPM operating speed, 3.5 Nm rated torque, and a Ø22 collet, this spindle is suitable for a range of light- to medium-duty machining applications. The air-cooled design eliminates the need for a separate water-cooling circuit, helping simplify equipment integration and maintenance.
JGFZ60-6Z/2.2
JST
220V/380V
100HZ
6000RPM
22mm clamp
| Quantity: | |
|---|---|
Product Description
The JGFZ60-6Z/2.2 is a 2.2kW square air-cooled right angle motorized spindle designed for CNC equipment that requires a compact spindle configuration and reliable machining performance.
Its right-angle structure allows the spindle to be integrated into equipment where a conventional straight spindle may not be suitable. The square housing also provides a practical mounting form for OEM machine builders and automation equipment manufacturers.
With a 6,000 RPM operating speed, 3.5 Nm rated torque, and a Ø22 collet, this spindle is suitable for a range of light- to medium-duty machining applications. The air-cooled design eliminates the need for a separate water-cooling circuit, helping simplify equipment integration and maintenance.
The JGFZ series is an ideal solution for manufacturers looking for a compact right angle CNC spindle motor for specialized machining equipment, multi-axis systems, and customized industrial automation applications.

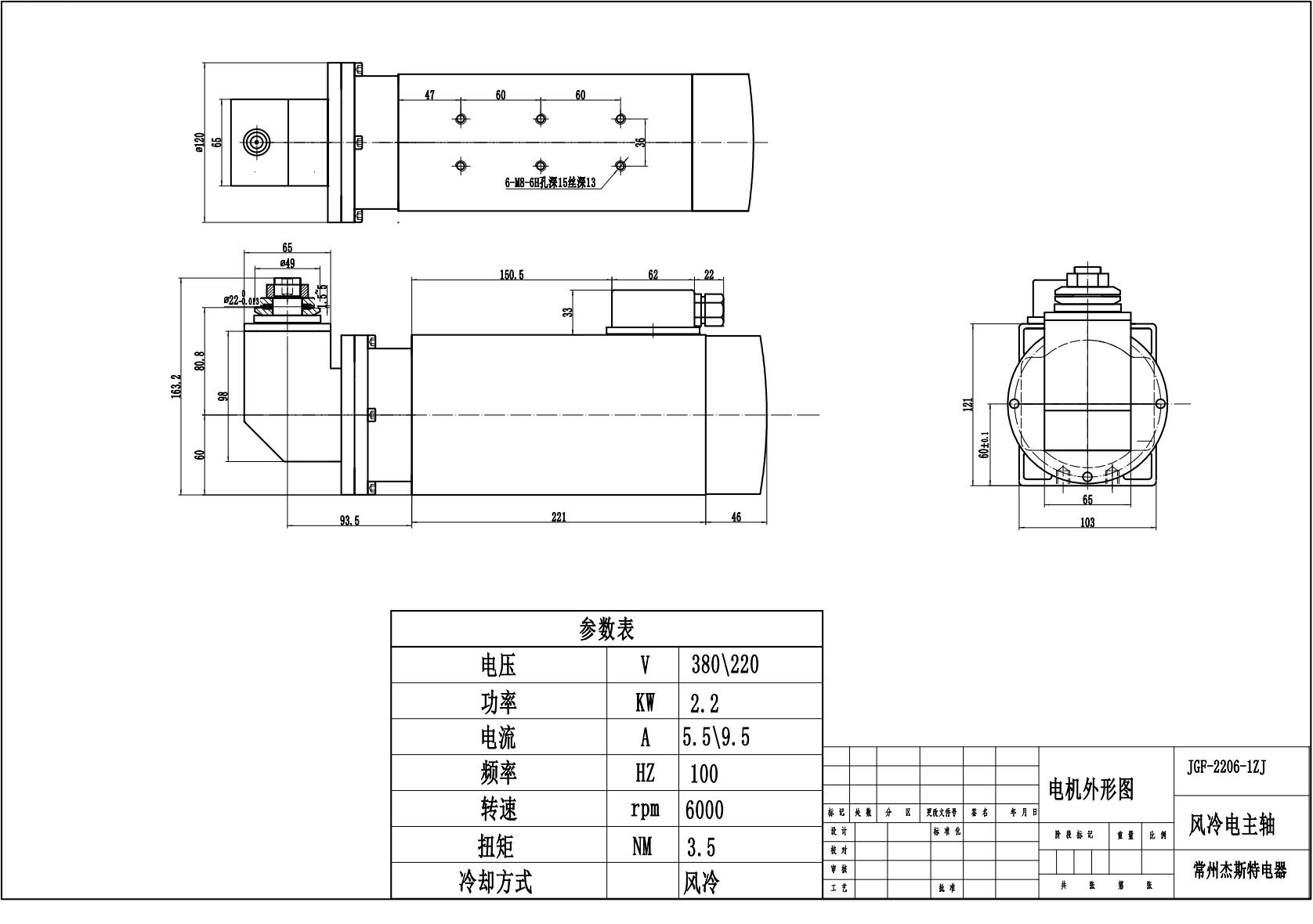

| Specification | Details |
|---|---|
| Model | JGFZ60-6Z/2.2 |
| Power | 2.2KW |
| Speed | 6000 RPM |
| Voltage | 220/380V |
| Current | 9.5/5.5A |
| Spindle poles | 2P |
| Torque | 3.5 Nm. |
| Collet | φ22 clamp |
| Motor Type | Asynchronous motor |
| Cooling | Air cooling |
| Lubrication | Grease |
| Weight | ≈16kg |
