ATC vs Manual Tool Change Spindle: The Definitive Guide for CNC Professionals

Introduction

Choosing between an ATC spindle and a manual tool change spindle is one of the most consequential decisions for any CNC operation. With a manual spindle, each tool swap takes 5-10 minutes of downtime. With an ATC spindle, changes happen in seconds—automatically. The difference isn't just convenience; it's a fundamental leap in productivity. This guide cuts through the marketing noise to help CNC manufacturers, engineers, and factory owners make the right call.

What Is a CNC Spindle Motor?



A CNC spindle motor is the heart of any CNC machine. It holds the cutting tool, spins it at speed, and delivers the torque to remove material. Modern spindles are electrospindles—integrated units powered by a Variable Frequency Drive (VFD).

Key specifications:

· Spindle power (HP/kW): Determines depth of cut

· Spindle speed (RPM): Affects surface finish

· Spindle torque: Critical for heavy cutting

· Spindle bearings: Determine runout and lifespan

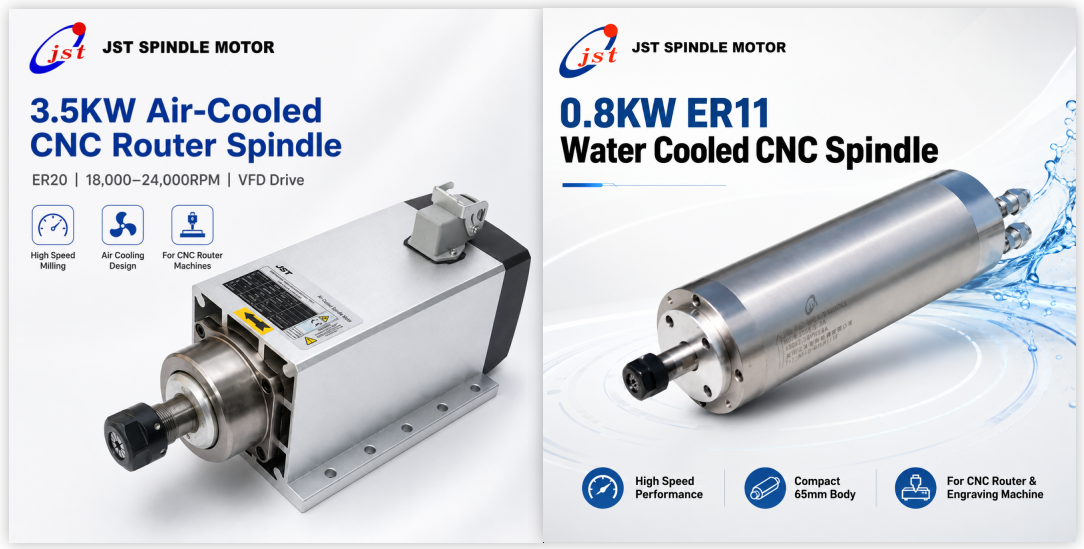

Manual Tool Change Spindle



A manual tool change spindle uses a collet system (typically ER20 or ER32). The operator stops the machine, loosens the collet nut, swaps tools, and restarts.

Advantages:

· Lower initial cost

· Simpler installation—no air lines required

· Less maintenance

· Flexibility to use any tool

Limitations:

· 3-10 minutes per change

· Operator fatigue

· Inconsistent Z-zero between changes

· No lights-out machining

ATC Spindle—The Game-Changer



An ATC spindle uses a spring-loaded drawbar to hold tool holders. Compressed air releases the drawbar, allowing a robotic arm or carousel to swap tools in 3-8 seconds.

Types by cooling:

· Air cooled spindle: Built-in fan. Simpler, lower cost, but duty cycle limited

· Water cooled spindle: Liquid cooling. Supports 24/7 continuous operation

Types by interface:

· BT30 spindle: Affordable, good for woodworking and light aluminum

· ISO30 spindle: European standard, general-purpose machining

· HSK F63 spindle: Premium choice for high speed spindle applications, superior rigidity

Comparison Table



Feature	Manual	ATC
Change Time	3-10 min	3-8 sec
Tool Holding	ER collet	BT30/ISO30/HSK F63
Air Required	No	Yes (85+ PSI)
Cost	Low	High (3-5x)
Maintenance	Minimal	Moderate
Lights-Out	No	Yes



Which Spindle for Which Job?



Woodworking Spindle: Cabinet and furniture production is where ATC shines. A typical job uses multiple tools—compression spiral, boring bit, profile bit. ATC runs continuously; manual stops three times per sheet.

Metal Machining Spindle: For aluminum, a CNC router spindle can work with proper speeds (10,000-15,000 RPM). For steel, you need serious spindle power—7.5+ HP—and high torque at low speeds. ATC is almost mandatory here because tool wear is significant.

Production Impact—Real Numbers



Cabinet shop example:

· Manual: 6 jobs/day, 3 tool changes/job, 5 min/change = 90 min daily downtime

· With ATC: 2 minutes total = 88 extra minutes of cutting daily

That's 1-2 additional jobs per day. For lights-out manufacturing, ATC enables unattended overnight runs, doubling capacity without adding headcount.

Buying Guide



Step 1: Define your profile
How many tool changes per job? If 3+, ATC makes financial sense.

Step 2: Determine power needs

Application	Power
Woodworking	5-7.5 HP
Aluminum production	7.5-10 HP
Heavy metal	10-20 HP

Step 3: Choose cooling

· Air cooled for intermittent use

· Water cooled for continuous production

Step 4: Select interface

· BT30 for woodworking

· ISO30 for general machining

· HSK F63 for high-speed precision

Expert Tips & Common Mistakes



Expert Tips:

· Invest in quality tool holders—cheap ones cause runout

· Use correct pull-studs to prevent tool pull-out

· Maintain clean, dry air at 85+ PSI

· Follow break-in procedures for new spindle bearings

· Monitor bearing temperature—overheating signals failure

Common Mistakes to Avoid:

· Underestimating air requirements

· Ignoring coolant compatibility—coolant destroys bearings

· Treating ATC and manual as interchangeable (ATC needs BT30/ISO30/HSK holders, not ER collets)

· Overlooking VFD programming

· Skipping regular maintenance

Buying Checklist



· Power matches your material

· Speed range covers your needs

· Cooling method fits your duty cycle

· VFD compatible

· Runout < 0.003 mm

· For ATC: interface (BT30/ISO30/HSK F63), drawbar force, magazine capacity

FAQs



1. Can I upgrade manual to ATC? Rarely cost-effective. Usually better to buy a new machine.

2. BT30 vs ISO30 vs HSK F63? BT30/ISO30 are similar 7:24 tapers. HSK F63 is hollow shank, better at high speeds.

3. How long do bearings last? 3,000-10,000 hours with proper maintenance.

4. Air or water cooled? Air for intermittent use. Water for continuous production.

5. Can a woodworking spindle cut metal? Yes, aluminum and brass, but not steel.

6. What power for aluminum? 5+ HP for light work, 7.5-10 HP for production.

7. Is ATC worth it for small shops? If you do 3+ changes per job and run batches, yes.

8. VFD compatibility? Check voltage, frequency range, and current capacity.

Conclusion



Choose manual if: You use 1-2 tools, budget is tight, no compressed air, low volume.

Choose ATC if: You run multi-tool jobs daily, need efficiency, want lights-out capability, or are scaling.

Either way, invest in quality. A well-built CNC spindle from a reputable manufacturer delivers years of reliable service.
