We've all been there. You're quoting a new job, looking at a new machine, or trying to squeeze more productivity from your existing production line. The bottleneck is almost always the same: the spindle. It's the point where rubber meets the road, where a perfectly programmed tool path either becomes a masterpiece of engineering or a smoking pile of scrap. Choosing the right CNC spindle motor isn't just a technical decision; it's a strategic business investment. It defines your shop's capabilities, your production efficiency, and ultimately, your bottom line.
This guide cuts through the marketing hype and engineering jargon to give you an insider's perspective. We'll walk through the critical parameters, from the raw physics of power and torque to the nuanced differences in tool holding systems, ensuring you have the knowledge to make a confident, informed decision for your specific operation.

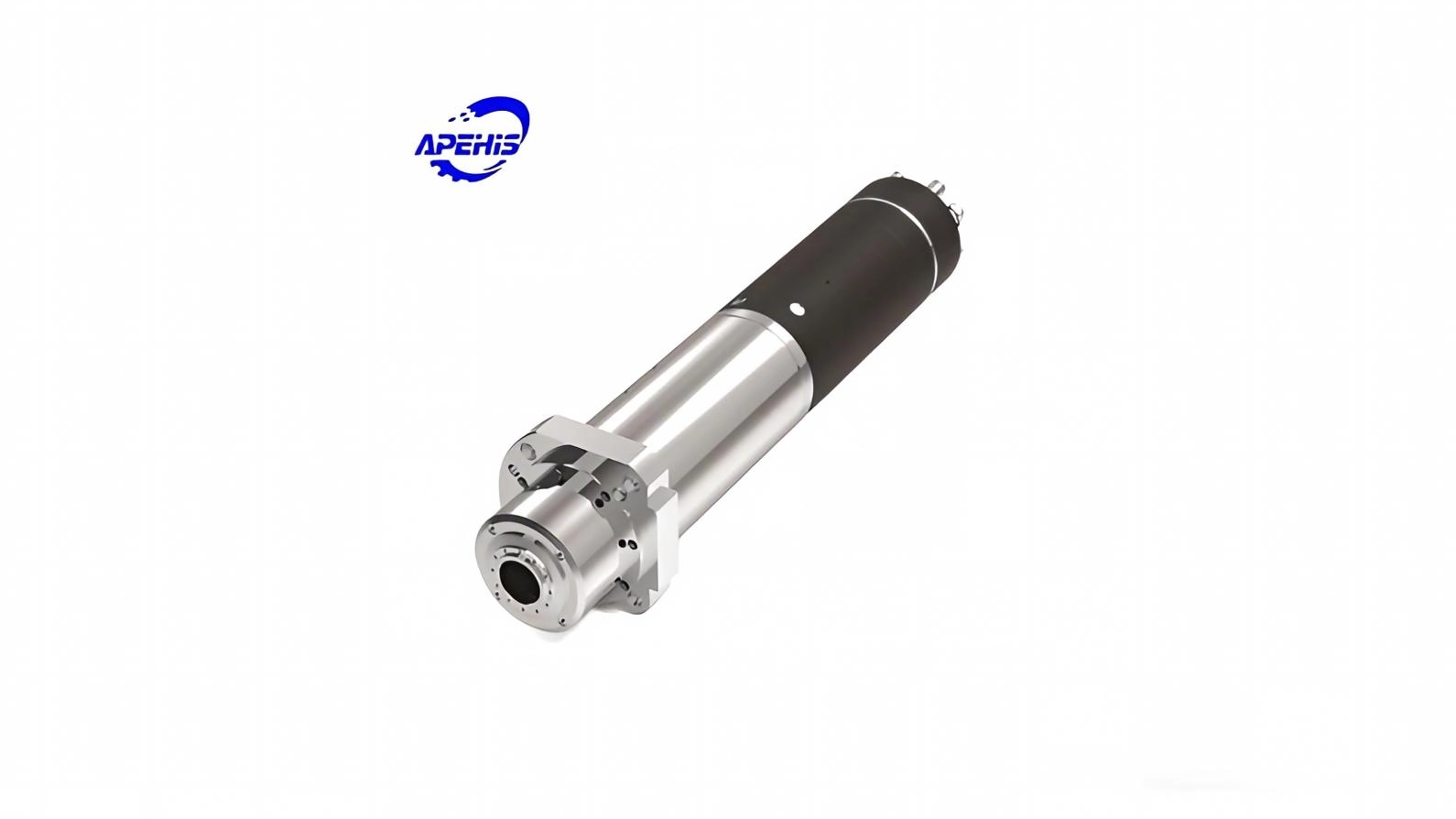

Think of the spindle motor as the beating heart of any CNC machine. The rigid frame, precision-ground linear rails, and sophisticated controller are all vital organs, but without a healthy heart pumping with the right rhythm and force, the entire system fails. The spindle doesn't just hold and rotate the tool; it manages the cutting forces, dissipates the heat of friction, and maintains geometric accuracy under extreme conditions.
A mismatch here is costly. Choose a spindle with insufficient spindle torque for titanium, and you'll break tools, scrap parts, and ruin the operator's day. Choose one with excessive spindle power for engraving, and you're paying a premium for energy and components you'll never use. The consequences of a poor selection cascade through your operation: unplanned downtime, poor surface finishes, reduced tool life, and a machine that's worth far less than your investment. Conversely, a perfectly matched CNC spindle unlocks hidden capacity, improves cycle times, and opens doors to new, more profitable jobs.
Understanding the "Big Three" performance specs is your starting point. Don't just glance at the headline numbers; understand what they mean in the real world.
Power, measured in kilowatts (kW) or horsepower (HP), indicates the spindle's capacity to do work—specifically, how much material it can remove over time. When we talk about spindle power, we must distinguish between the S1 (continuous) rating and the S6 (intermittent overload) rating. The S1 rating is the power the spindle can deliver 24/7 without overheating. The S6 rating is a peak number for short bursts.
A metal machining spindle designed for roughing steel needs a high S1 continuous power rating. A woodworking spindle performing high-speed routing in MDF sees a lighter, more consistent load. Always match the S1 rating to your most demanding continuous cut. If you plan to take a heavy depth of cut in aluminum, calculate the required power based on your desired material removal rate (MRR).
Speed is all about the tool's cutting edge velocity. For any given tool material and workpiece, there is an ideal surface feet per minute (SFM) that dictates the required spindle speed. A 1/8" carbide end mill in aluminum needs a high speed spindle to reach its optimal SFM, perhaps 24,000 RPM or more. Conversely, a 2-inch face mill in stainless steel needs a low, torque-rich speed.
The max RPM of a CNC router spindle has become a key marketing spec, but faster isn't always better. For large-diameter tools and hard metals, a 10,000–15,000 RPM spindle with high torque is far more valuable than a 30,000 RPM unit with no torque at the low end. It's about having the right speed range for your tooling portfolio.
If power keeps the tool moving, torque is the wrenching force that does the actual cutting. Spindle torque is the most misunderstood, yet arguably the most critical specification. Power gives you speed, but torque gives you bite. When a spindle motor is optimized for high speed, its maximum torque usually occurs at a much lower RPM. The relationship is fundamental: Power (kW) = (Torque (Nm) x RPM) / 9550.
This is why a spindle's torque curve is more important than its peak torque number. You need a motor that delivers high torque across the RPM range you'll actually use, especially for drilling and tapping operations.
· Expert Tip: Don't be fooled by a high peak torque value at 1,500 RPM. If you're a mold maker who finishes at 18,000 RPM, what's the torque at that speed? Demand the full speed-torque power chart from your supplier. You're looking for a flat, broad torque curve in your working range.
Heat is the mortal enemy of precision and longevity. How your spindle manages this heat fundamentally affects its application and operational cost. This is the classic debate: air cooled spindle vs. water cooled spindle.
Feature | Air Cooled Spindle | Water Cooled Spindle |
Cooling Mechanism | Axial fan integrated into the motor shaft | External water chiller/circulator system |
Noise Level | High; fans create significant windage noise | Very low; ideal for noise-sensitive shops |
Thermal Management | Self-contained, simpler to install | More complex, but superior and more stable heat dissipation |
Speed Range | Excellent for high-speed applications | Excellent for both low and high-speed, continuous runs |
Maintenance | Lower component count, easy to maintain | Requires periodic checks on hoses, coolant levels, and pump |
Cost | Generally lower upfront cost | Higher upfront cost due to chiller system |
Ideal Application | Intermittent cutting, woodworking, plastics | Long-cycle 3D contouring, metal machining, tight-tolerance work |
The air cooled spindle uses an impeller to force ambient air across the motor housing. It's elegantly simple, making it a favorite for hobbyists, portable machines, and light-duty woodworking spindle applications. The downside is noise—often exceeding 80 decibels—and the fact that cooling efficiency decreases at low RPMs. If you're in a co-working space or care about operator comfort, this is a major factor.
A water cooled spindle uses a closed loop of water-glycol coolant to continuously extract heat from the motor core. This results in near-silent operation at the spindle head and, crucially, minimal thermal growth. If your CNC spindle experiences thermal expansion during a job, your Z-axis zero shifts, compromising accuracy. For long, unattended 3D carving, mold making, or precision metal machining spindle work, the thermal stability of a water-cooled system is non-negotiable.
The union between the spindle shaft and the cutting tool is a critical zone of dynamic forces and precision. A poor interface will negate the best spindle motor's performance.
If your production involves multiple tools per setup, an ATC spindle is no longer a luxury; it's a productivity imperative. A manually-operated collet chuck is simple and low-cost, but the seconds spent changing tools turn into hours of non-productive time over a year. An ATC system, with its drawbar and tool magazine, automates this, enabling lights-out manufacturing and complex, multi-tool strategies. The spindle must have the mechanical, pneumatic, and electrical architecture to support the automated tool clamp/unclamp sequence.
The tool holder taper is the precision-ground cone that mates the tool holder to the spindle. This is where you see standards like BT30 spindle, ISO30 spindle, and HSK F63 spindle. The choice depends on your machine architecture and performance goals.
· BT30 Spindle: The workhorse of the Japanese and global market. Its symmetrical dual-contact flange supports a tool change gripper, making it standard on many drill-tap centers. It offers a good balance of clamping force and rigidity for light to medium milling.
· ISO30 Spindle: Slightly older, often found on European-style machines. The key difference is the drive key orientation. While mechanically interchangeable in some cases, its pull-stud retention system is often seen as providing slightly higher clamping force, making it a favorite for heavy roughing where absolute rigidity is paramount.
· HSK F63 Spindle: This hollow shank tool holder represents a paradigm shift. Instead of a taper-only fit, it uses a dual-contact system: the taper and the face of the flange contact simultaneously. This creates an extremely rigid, over-determined connection that's incredibly short and light. For high speed spindle applications above 20,000 RPM, the HSK interface's resistance to centrifugal force expansion is superior to steep taper designs, preventing pull-back at high RPM. It is the modern choice for high-speed, high-precision, 5-axis machining.
Abstract specs only matter when mapped to a real job. The spindle that turns a 4-inch panel-flattening bit is not the one that micro-machines a medical implant.
A woodworking spindle is optimized for high speeds and clean cuts, not high load. A typical CNC router spindle for a cabinet shop will run between 12,000 and 24,000 RPM. The cutting forces in MDF, plywood, or solid wood are significantly lower than in metals. Dust is the primary enemy, so a labyrinth seal system and sometimes a positive air purge are critical features. A water cooled spindle is often favored here, not for thermal stability, but for the dramatic noise reduction in what can be a small, enclosed shop.
A metal machining spindle demands a different DNA. The bearings are larger, preloaded more heavily, and designed for extreme rigidity and high clamping force. Cutting hardened steel or superalloys requires monstrous torque at low RPM (e.g., 300-3,000 RPM), while cutting aluminum to a mirror finish requires a stable, high-speed spindle with minimal runout. A spindle optimized for steel cannot be effective in aluminum without a compromise in one area. You might need a BT30 spindle for general mill-turn work or an HSK F63 spindle for high-speed aerospace aluminum. One common mistake is buying a "universal" milling spindle and finding it excels at nothing. Define your material first.
Inside every great spindle is a set of precision bearings that make sub-micron accuracy possible. They are the components most sensitive to misuse.
Modern spindle bearings are almost universally angular contact ball bearings, arranged in tandem, back-to-back, or face-to-face configurations to handle both radial and axial loads. The choice between steel and ceramic (hybrid) balls is significant. Ceramic balls are 40% lighter and have a lower coefficient of thermal expansion. They can run cooler, faster, and with less lubrication, making them the default choice for high speed spindle motors in HSM toolpaths. Steel bearings, however, can absorb greater shock loads, and you might find them in heavy-duty, low-speed spindles for gear hobbing or deep-hole drilling.
Grease-packed bearings are convenient and offer a long, maintenance-free life if not overspeed or overloaded. However, for 24/7 production spindles, an oil-air lubrication system is standard. It injects a precise, metered amount of oil directly into the bearing, and the airflow also creates positive internal pressure to exclude contaminants. A critical common mistake is ignoring the air quality. If your oil-air system uses unfiltered, wet shop air, you are injecting a water-oil slurry directly into your bearing, guaranteeing premature failure. Use a refrigerated air dryer and a fine coalescing filter.
This systematic approach will help you cut through the noise and narrow down your options.
1. Define Your Core Material: Is it 90% aluminum, 10% steel? Wood and plastics only? The material dictates the required speed and torque.
2. Calculate Your Cutting Forces: Use a machinist calculator or app to determine the necessary spindle torque and spindle power (kW) for your most demanding expected cut, not your average cut.
3. Determine the Cooling Method: For long-cycle precision work or noise-sensitive shops, choose water cooled. For intermittent use and simpler setups, an air cooled spindle is sufficient.
4. Select the Tool Holder Interface: Based on your machine's tool change system and your accuracy needs. Manual tool change for budget builds; ATC spindle for production; BT30, ISO30, or HSK based on your preference for rigidity, speed, and precision.
5. Specify the Bearings: Ceramic hybrid bearings for speeds consistently above 18,000 RPM or for the lowest possible runout. High-quality steel bearings for heavy, slow-speed hogging.
6. Match the Drive (VFD): The spindle is just one half of the system. The Variable Frequency Drive (VFD) must be capable of matching the spindle's voltage, current, and frequency requirements. A sensorless vector control VFD is essential for maintaining torque at low speeds.
7. Audit the Supplier: Does the supplier offer a detailed torque curve? A detailed mechanical drawing? What is their after-sales support and spare parts availability? Price is what you pay; value is what you get.
After years of fielding calls about broken spindles and failed projects, here are the cardinal sins of spindle selection:
· Mistake 1: Chasing Peak Power, Ignoring Torque Curve. A 10 HP spindle might have no torque at 500 RPM, making it useless for a large drill. The torque curve is the truth.
· Mistake 2: Assuming "Rigid" Means Unbreakable. A crash at full rapid speed will destroy even the most expensive spindle bearings. Operator training and proper programming are your cheapest insurance.
· Mistake 3: Forgetting the Z-Axis Weight Capacity. A heavy BT30 spindle motor can overwhelm the Z-axis servo on a lightweight gantry router, causing following errors and poor surface finish.
· Mistake 4: Undersizing the VFD. Using a VFD without an adequate overload rating (usually 150% for 1 minute) for heavy-duty cutting will lead to constant tripping and frustration.
· Expert Tip: Always budget for a high-quality, balanced tool holder assembly. An unbalanced nut at 24,000 RPM can excite a vibration that destroys your spindle bearings in minutes. The spindle is a system, not a component.
Before you contact a supplier, have this ready:
· Primary workpiece material(s) defined.
· Target max and min RPM for my tooling identified.
· Required torque (Nm) at my most critical cutting RPM calculated.
· Cooling type selected: Air or Water.
· Tool holder interface and size determined (BT30, HSK, etc.).
· ATC required? Yes/No.
· Bearing type specified (Steel vs. Ceramic).
· Required power supply and VFD specs confirmed.
· Precision class and runout tolerance required (e.g., <5 microns).
· Physical dimensions and weight limits of my machine checked.
The primary difference lies in heat dissipation and noise. An air cooled spindle is simpler and louder, using a fan. A water cooled spindle uses an external coolant loop, providing more stable, quieter, and more efficient cooling for long, heavy-duty cycles.
You can, with extreme caution. A woodworking spindle typically lacks the bearing preload and rigidity for metals, leading to chatter and rapid tool/bearing wear. It's fine for very light engraving on soft brass or aluminum, but it's not a replacement for a proper metal machining spindle.
If your part requires more than one tool and you value your time. If tool changes between operations take up a significant portion of your cycle time, an ATC spindle will pay for itself rapidly in labor savings and increased throughput.
With correct use (no crashes, proper lubrication, balanced tools), a professional CNC spindle should last between 5,000 and 15,000 hours before a bearing replacement is needed. A poorly maintained one can fail in under 500 hours.
Check the cooling system first. For water cooled spindles, verify pump flow and coolant level. For air cooled spindles, check for fan blockage. If cooling is fine, the issue could be over-preloaded bearings, excessive run speeds, or a VFD parameter mismatch driving the motor incorrectly.
It's possible, but you must consider more than just the physical mount. The Z-axis servo must be able to handle the increased weight, and you will likely need a larger VFD, new cabling, and potentially a structural reinforcement of the gantry.
The HSK F63 spindle interface provides superior axial and radial repeatability due to its dual-face contact. It's shorter and lighter, which is a massive advantage at high speeds where traditional steep tapers expand and pull back. It's the gold standard for high-speed precision machining.
For grease-packed bearings, follow the manufacturer's regreasing schedule, typically every 2,000 hours. For oil-air systems, maintain the quality of the air and oil supply daily. The most critical "maintenance" is daily monitoring—run a warm-up program every morning to ensure proper lubrication distribution before you start cutting.
Selecting a CNC spindle motor is an exercise in clear-eyed honesty about what your machine must accomplish every day. It's not about the most expensive option or the highest RPM; it's about finding the perfect mechanical heart that harmonizes with your power demands, material requirements, and precision goals. A methodical, specification-driven selection process—backed by a supplier who offers real engineering support—transforms the spindle from a consumable into a long-term asset.
We know that off-the-shelf solutions don't fit every challenge. If you're wrestling with a demanding application, need a custom motor integration, or simply want to talk through your options with a team that understands the physics of cutting as well as the economics of your shop floor, we're here to help.
Stop compromising on the heart of your machine. Contact our factory today for a one-on-one consultation and let us engineer a customized CNC spindle solution that meets your exact performance, speed, and torque requirements. Your next level of productivity starts here
