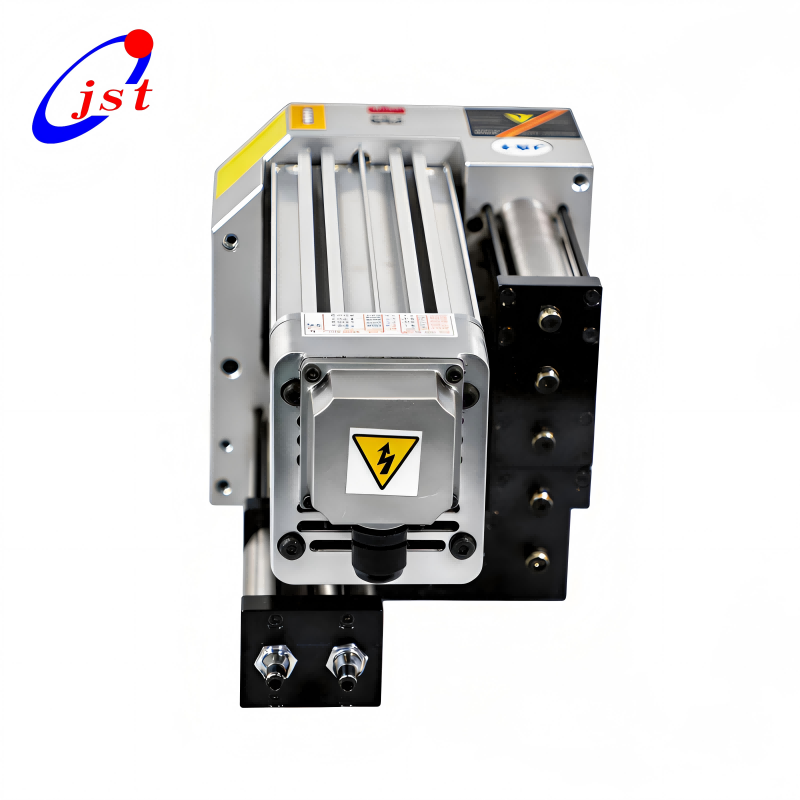

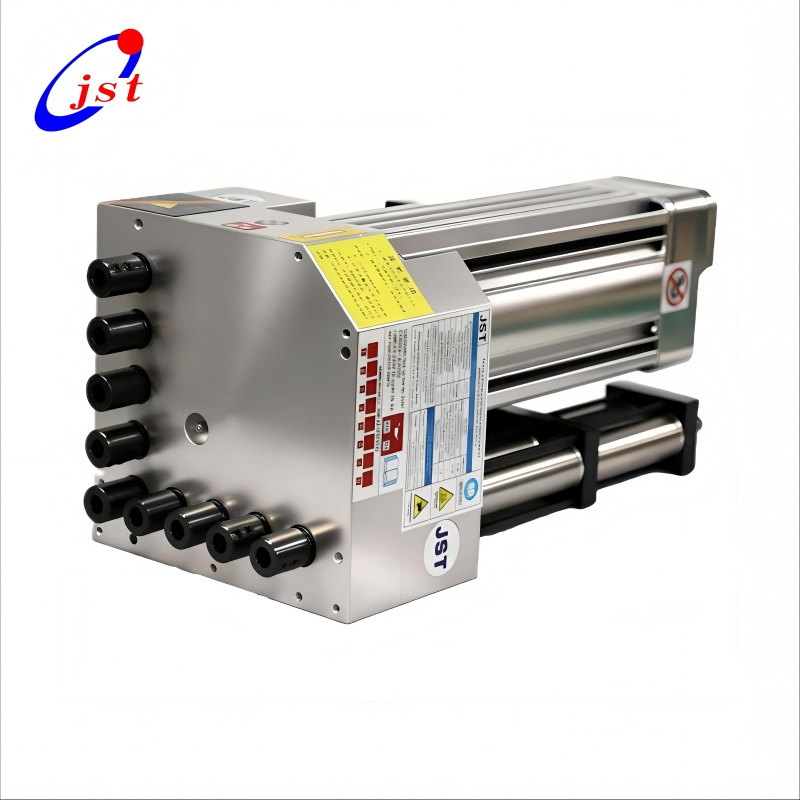

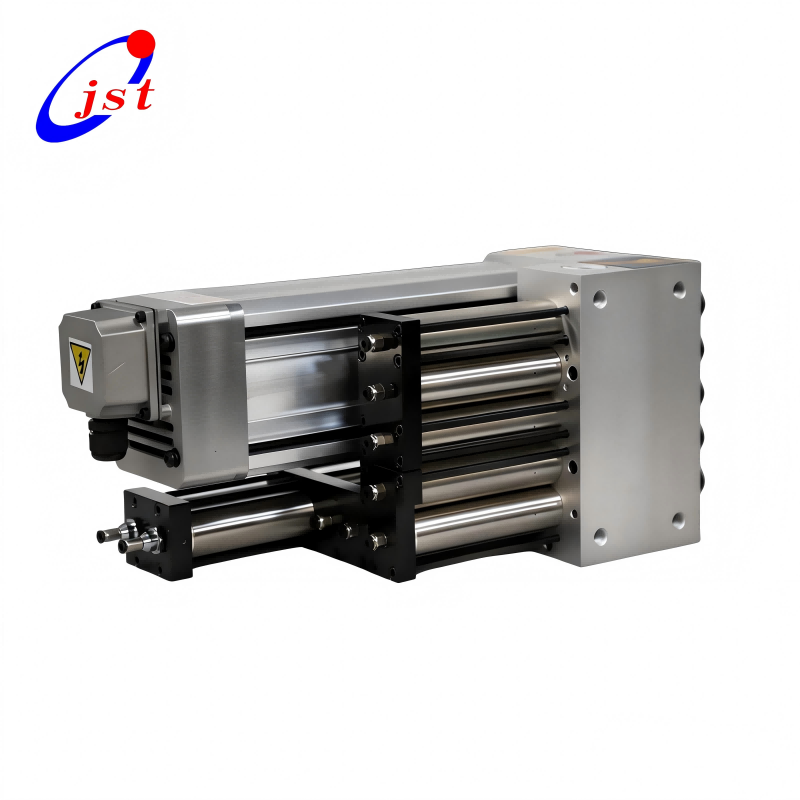

JGP-A5+4 CNC Drilling Group Unit 2.2kW Multi-Spindle Drilling Head for Woodworking Machines

Product Overview

The JGP-A5+4 CNC Drilling Group Unit is a compact, high-efficiency multi-spindle drilling solution designed for six-side drilling machines and CNC woodworking equipment.
Powered by a 2.2kW motor, this drilling group integrates multiple vertical spindles in a rigid structure, delivering stable performance, high positional accuracy, and long service life.

The reinforced base plate and optimized internal structure significantly improve overall rigidity, reducing vibration and drill rebound during operation.

With low temperature rise, low noise, and precise keyway matching, the JGP-A5+4 ensures consistent drilling accuracy even under continuous industrial use.

It is widely used in panel furniture production, cabinet manufacturing, and automated woodworking lines, where high efficiency and reliability are required.

Key Features

2.2kW high-performance motor for stable and continuous drilling

Multi-spindle integrated design for efficient batch drilling

Reinforced structural base improves rigidity and machining accuracy

Low vibration & low noise operation for better surface quality

Precise keyway matching ensures accurate spindle alignment

Compact size & easy integration with CNC drilling machines

JGP-A5+4 Drilling heads Technical Specifications

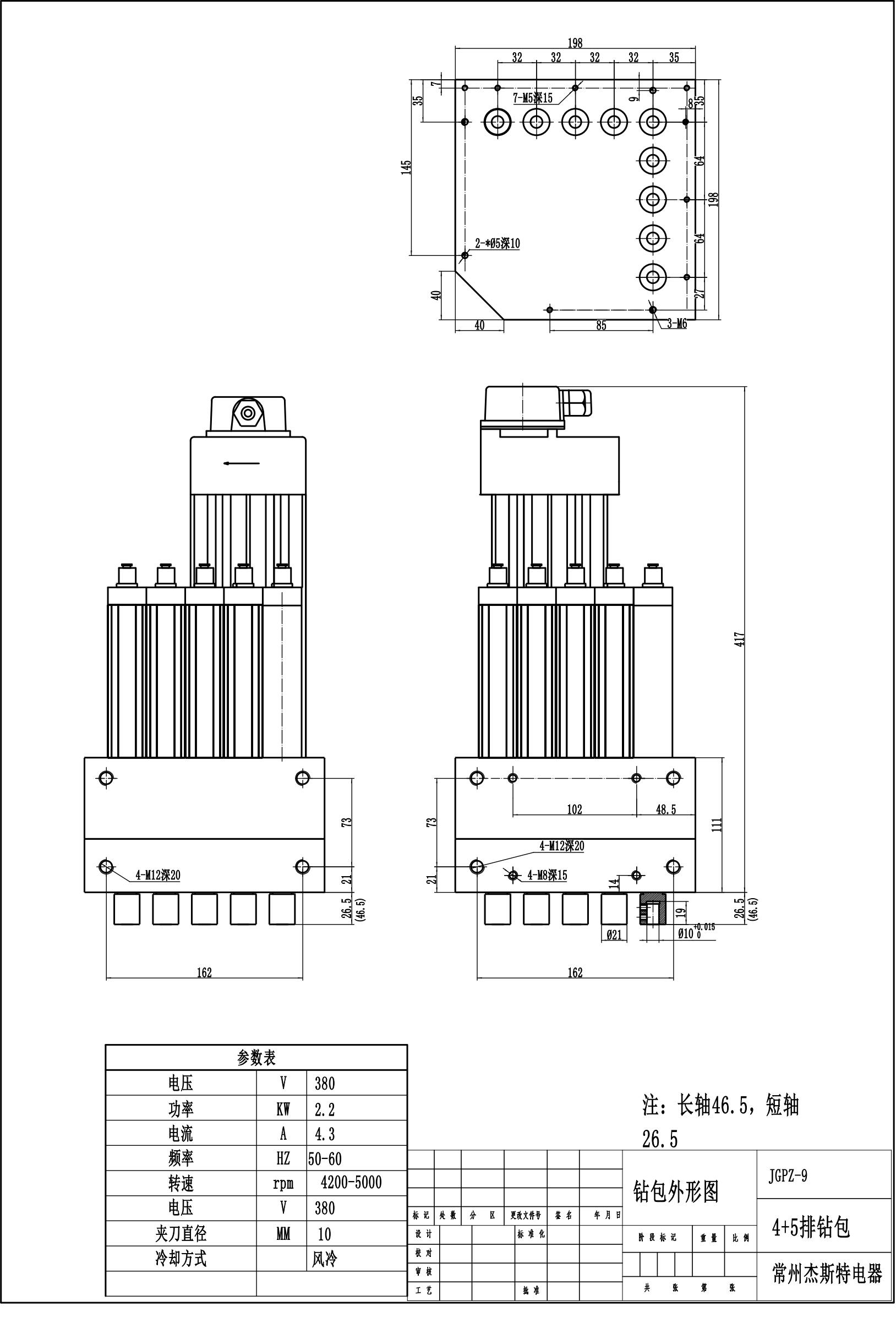

JGP-A5+4 Drilling heads PDF Drawing Download

JGP-A5+4 CNC Drilling Group Unit 2.2kW Multi-Spindle Drilling Head for Woodworking Machines.pdf

Applications & Use of JGP-A5+4 Drilling heads

Six-side CNC drilling machines

Woodworking CNC machining centers

Panel furniture production lines

Cabinet and wardrobe manufacturing

Automated drilling systems for MDF, plywood, and solid wood

Why Choose JST JGP-A5+4 Drilling heads ?

OEM & Customization Available

Custom speed, voltage, logo options

OEM solutions for machine builders

Factory direct supply with stable quality control

Professional technical support and fast response

Rigorous dynamic balancing tests and runout accuracy tests ensure the excellent quality of each spindle

Package & Shipping

Inner protective foam case.

Outer plywood shipping box.

Optional: Custom-branded packaging available.

Certifications of JST Spindle

CE certification

EMC certification

LVD certification

quality certification

ROHS certification

UKCA certification

JST Spindle Motor Factory

JST Company Outside

JST Workshop

JST Workshop

JST Workshop

JST Equipments

JST Equipments

Packaging of JST Spindle

Packing

Packing

Packing

Packing

Packing

FAQ – JGP-A5+4 Drilling heads

What is a CNC drilling group unit?

A CNC drilling group unit is an integrated drilling head with multiple spindles, designed to perform efficient and precise drilling operations on CNC woodworking and panel processing machines.

What machines is the JGP-A5+4 CNC drilling unit used for?

The JGP-A5+4 is mainly used on six-side drilling machines, CNC woodworking machines, and panel furniture production equipment for MDF, plywood, and solid wood.

What materials can this CNC drilling head process?

It is suitable for woodworking materials such as MDF, particle board, plywood, laminated boards, and solid wood used in cabinet and furniture manufacturing.

What are the advantages of a multi-spindle drilling unit?

A multi-spindle drilling unit reduces machining time, improves hole position consistency, minimizes vibration, and increases productivity compared to single-spindle drilling solutions.

Can this CNC drilling unit be customized?

Yes. Voltage, drilling configuration, and installation interfaces can be customized according to different CNC machine requirements and OEM applications.
