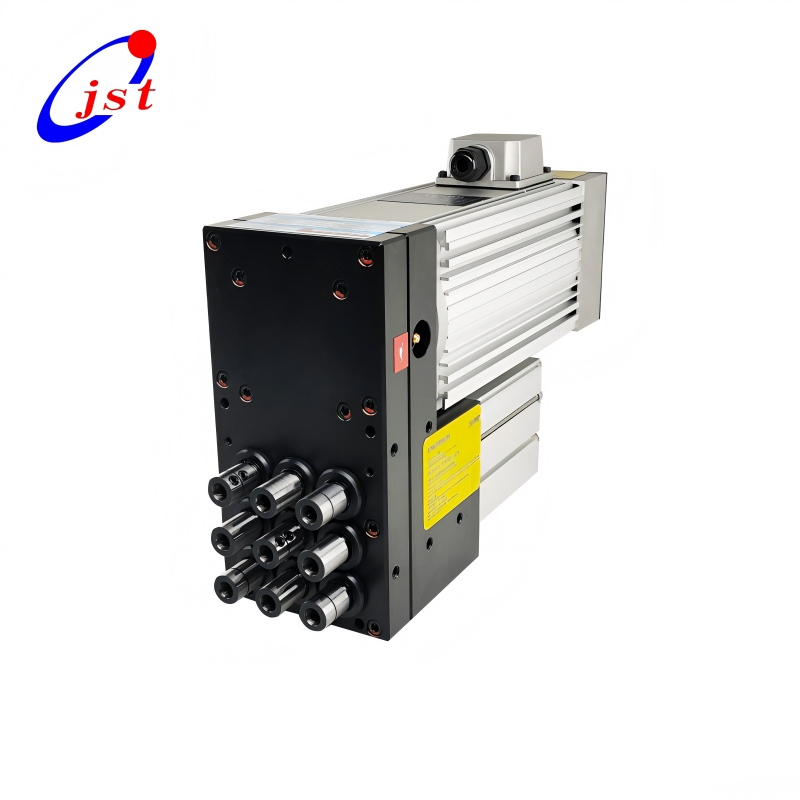

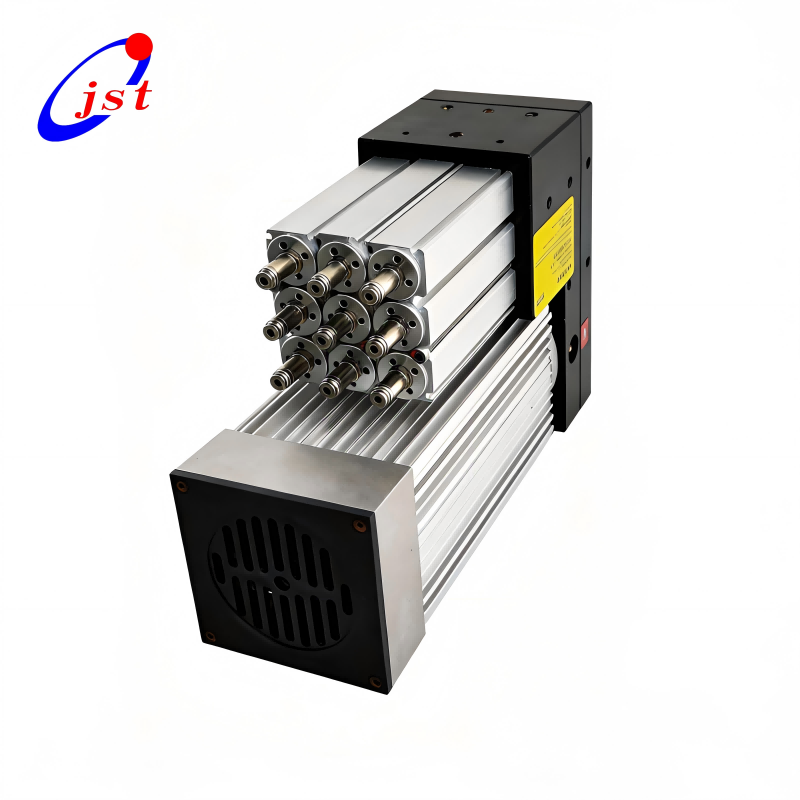

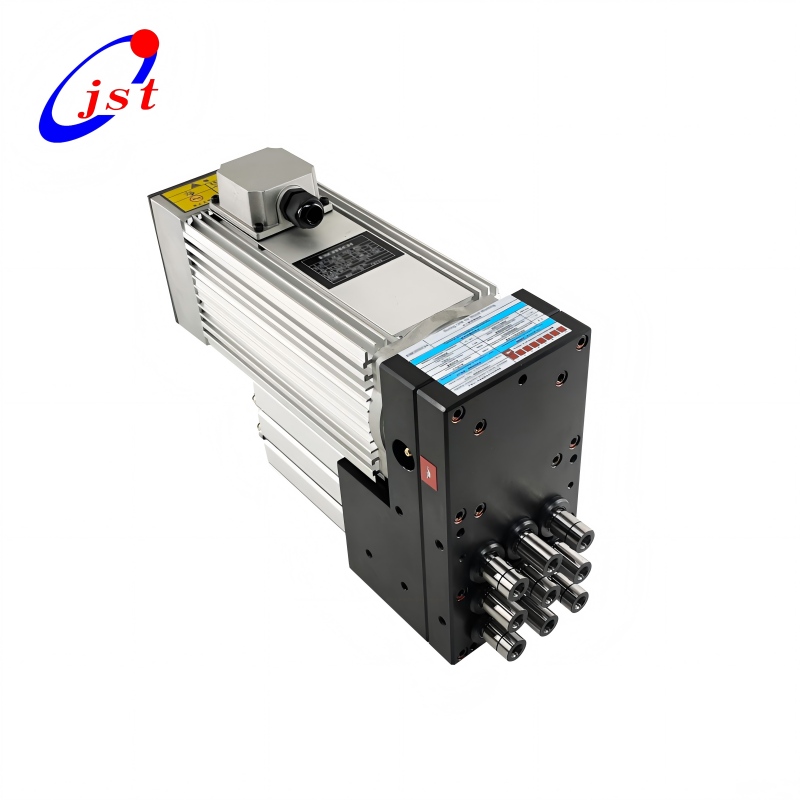

JGP-A9 CNC Drilling Group Unit 2.2kW Multi-Spindle Drilling Head for Woodworking

Product Overview

The JGP-A9 CNC Drilling Group Unit is a high-performance multi-spindle drilling head, tailored for six-side drilling machines and CNC woodworking equipment. With a 2.2kW motor, the unit ensures high-speed, precision drilling for wood, MDF, plywood, and other panel materials.

This unit integrates 9 vertical drilling spindles, significantly enhancing productivity by enabling simultaneous drilling. Its reinforced design ensures stability and minimizes vibrations, while the low temperature rise and low noise operation contribute to consistent, high-quality drilling. The precise keyway matching further ensures alignment accuracy, making it ideal for woodworking and panel processing applications.

The JGP-A9 is perfect for panel furniture production, cabinet manufacturing, and other CNC drilling applications where efficiency, reliability, and precision are paramount.

Key Features

2.2kW high-performance motor for stable and continuous drilling

9 vertical spindles for efficient multi-hole drilling

Reinforced base plate for enhanced rigidity and stability

Low vibration and low noise operation for precision results

High-speed motor operation for improved productivity

Precise keyway matching for consistent spindle alignment

Compact design for easy integration with CNC systems

JGP-A9 Drilling heads Technical Specifications

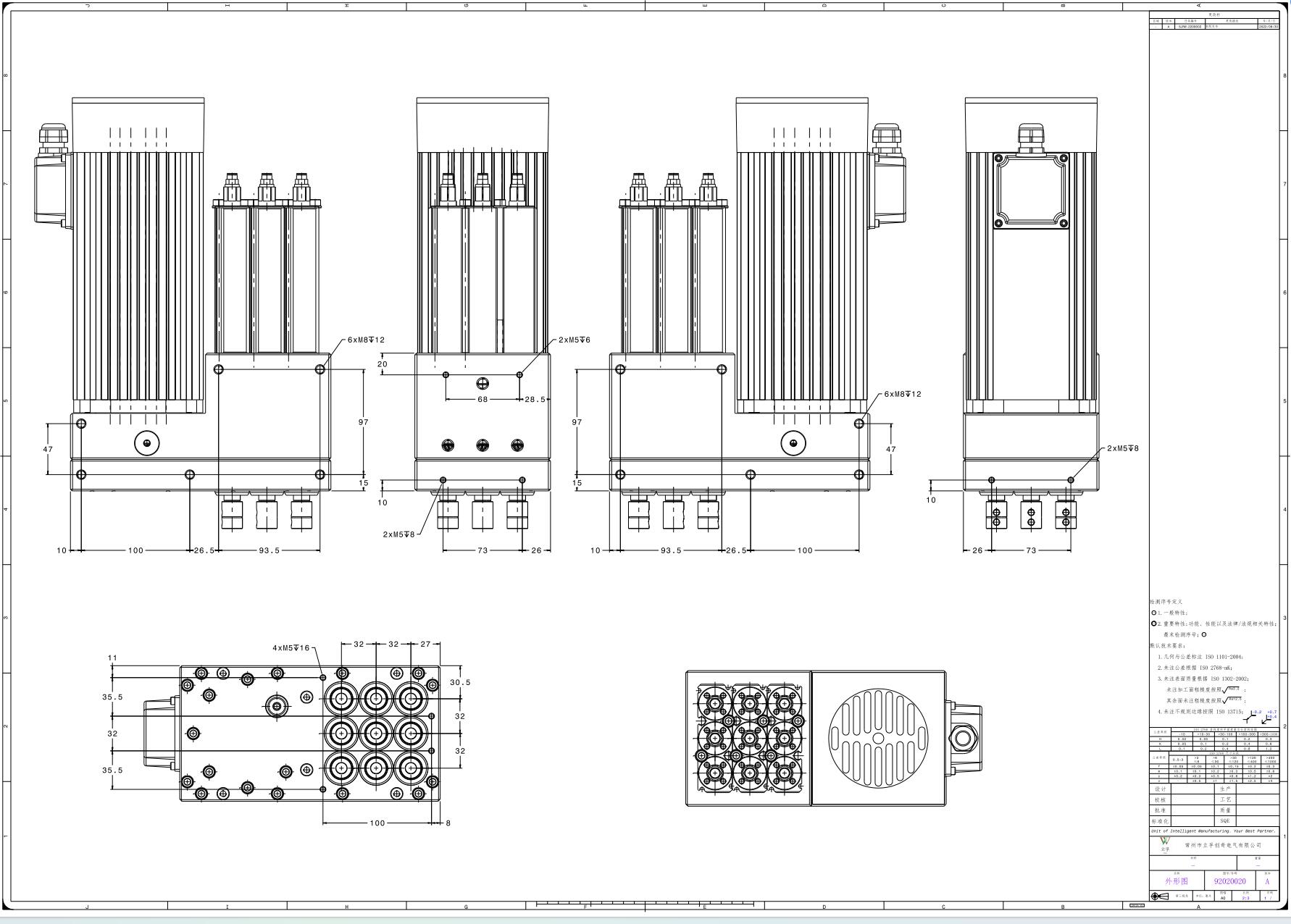

JGP-A9 Drilling heads PDF Drawing Download

JGP-A9 CNC Drilling Group Unit 2.2kW Multi-Spindle Drilling Head for Woodworking Machines.pdf

Applications & Use of JGP-A9 Drilling heads

Six-side CNC drilling machines

Woodworking CNC machining centers

Panel furniture production lines

Cabinet and wardrobe manufacturing

Automated drilling systems for MDF, plywood, and solid wood

Why Choose JST JGP-A9 Drilling heads ?

OEM & Customization Available

Custom speed, voltage, logo options

OEM solutions for machine builders

Factory direct supply with stable quality control

Professional technical support and fast response

Rigorous dynamic balancing tests and runout accuracy tests ensure the excellent quality of each spindle

Package & Shipping

Inner protective foam case.

Outer plywood shipping box.

Optional: Custom-branded packaging available.

Certifications of JST Spindle

CE certification

EMC certification

LVD certification

quality certification

ROHS certification

UKCA certification

JST Spindle Motor Factory

JST Company Outside

JST Workshop

JST Workshop

JST Workshop

JST Equipments

JST Equipments

Packaging of JST Spindle

Packing

Packing

Packing

Packing

Packing

FAQ – JGP-A9 Drilling heads

What is a CNC drilling group unit?

A CNC drilling group unit is an integrated drilling head with multiple spindles, designed to perform efficient and precise drilling operations on CNC woodworking and panel processing machines.

What machines is the JGP-A9 CNC drilling unit used for?

The JGP-A9 is mainly used on six-side drilling machines, CNC woodworking machines, and panel furniture production equipment for MDF, plywood, and solid wood.

What materials can this CNC drilling head process?

It is suitable for woodworking materials such as MDF, particle board, plywood, laminated boards, and solid wood used in cabinet and furniture manufacturing.

What are the advantages of a multi-spindle drilling unit?

A multi-spindle drilling unit reduces machining time, improves hole position consistency, minimizes vibration, and increases productivity compared to single-spindle drilling solutions.

Can this CNC drilling unit be customized?

Yes. Voltage, drilling configuration, and installation interfaces can be customized according to different CNC machine requirements and OEM applications.

Can I visit your factory?

Yes welcome warmly. No. 8 Hengcui Road, Henglin Town, Changzhou Economic Development Zone, Jiangsu Province, China.
