The JGP-A12B4L8Z1 CNC Drilling Group Unit is an advanced multi-function drilling and sawing unit engineered for six-side drilling machines and CNC woodworking equipment.
Powered by a 2.2kW motor, this model integrates 12 vertical drills, 4 horizontal drills, 1 saw blade, and 8 pushers, enabling drilling, slotting, and sawing operations to be completed in a single machining cycle.
The customized reinforced base plate significantly improves structural rigidity, while the precision gear transmission ensures low temperature rise, low noise, and smooth operation. Precise keyway matching between spindles and housing effectively reduces vibration and drill rebound, ensuring high hole position accuracy and consistent machining quality.
Designed for panel furniture, cabinet, and modular furniture production, the JGP-A12B4L8Z1 is ideal for manufacturers seeking maximum integration, higher efficiency, and reduced cycle time in automated woodworking lines.
JGP-A12B4L8Z1
JST
380V/220V
50-60 HZ
2800-3400 RPM
| Quantity: | |
|---|---|
Product Description

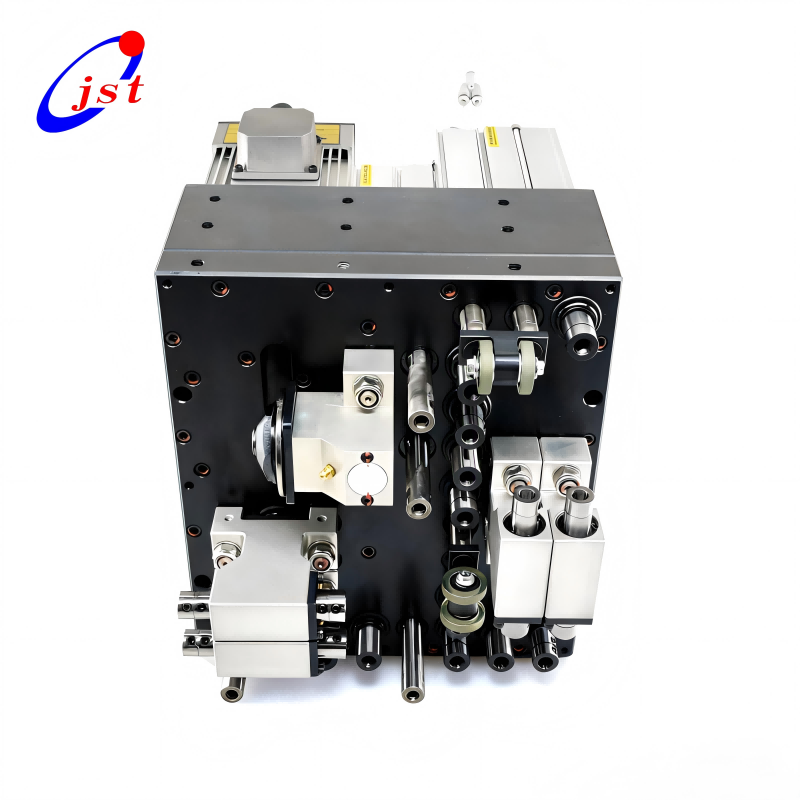

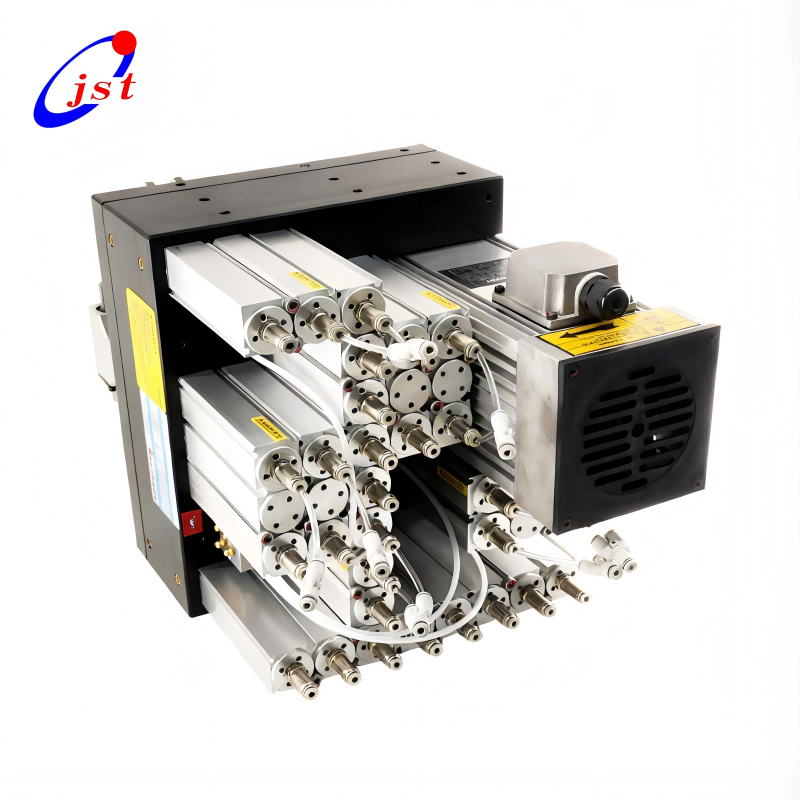

The JGP-A12B4L8Z1 CNC Drilling Group Unit is an advanced multi-function drilling and sawing unit engineered for six-side drilling machines and CNC woodworking equipment.
Powered by a 2.2kW motor, this model integrates 12 vertical drills, 4 horizontal drills, 1 saw blade, and 8 pushers, enabling drilling, slotting, and sawing operations to be completed in a single machining cycle.
The customized reinforced base plate significantly improves structural rigidity, while the precision gear transmission ensures low temperature rise, low noise, and smooth operation.
Precise keyway matching between spindles and housing effectively reduces vibration and drill rebound, ensuring high hole position accuracy and consistent machining quality.
Designed for panel furniture, cabinet, and modular furniture production, the JGP-A12B4L8Z1 is ideal for manufacturers seeking maximum integration, higher efficiency, and reduced cycle time in automated woodworking lines.
12 vertical + 4 horizontal drilling spindles for multi-directional drilling
Integrated saw blade unit for slotting and cutting operations
2.2kW industrial motor for stable continuous operation
Highly integrated CNC drilling group design reduces machining time
Reinforced base plate enhances rigidity and accuracy
Low vibration & low noise for high-quality surface finish
Designed specifically for six-side drilling machines
| Specification | Details |
|---|---|
| Model | JGP-A12B4L8Z1 |
| Power | 2.2 KW |
| Voltage | 220 / 380 V |
| Current | 7.4 / 5.3 A |
| Speed Range | 2800-3400 RPM |
| Frequency | 50-60 Hz |
| Vertical Drilling Speed | 4500 rpm |
| Horizontal Drilling Speed | 4500 rpm |
| Saw Blade Speed | 4500 rpm |
| Vertical Drill Stroke | 68 mm |
| Cross Drilling Stroke | 68 mm |
| Saw Blade Stroke | 68 mm |
| Drill Diameter | Ø10 mm |
| Number of Vertical Drills | 12 |
| Horizontal Drilling Quantity | 4 |
| Number of Saw Blades | 1 |
| Number of Pushers | 8 |
| Weight | 65 kg |
| Applications | Six-side CNC drilling machines, Woodworking CNC machining centers, Panel furniture production lines, Cabinet and wardrobe manufacturing, Automated drilling systems for MDF, plywood, and solid wood |

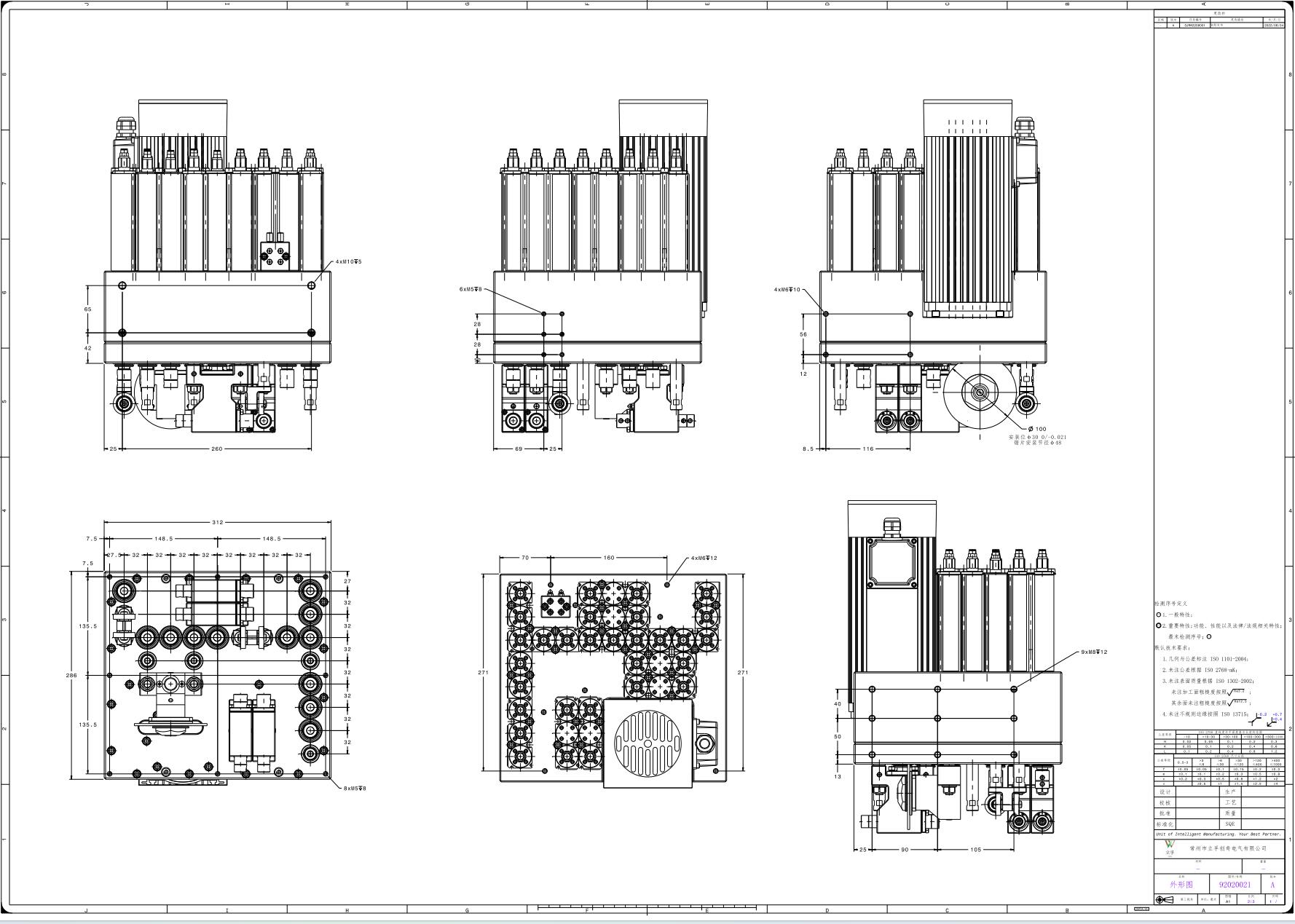

JGP-A12B4L8Z1 CNC Drilling Group Unit 2.2kW Multi-Spindle Drilling Head for Woodworking Machines.pdf
Six-side CNC drilling machines
CNC woodworking machining centers
Panel furniture production lines
Cabinet and wardrobe manufacturing
Automated drilling systems for MDF, plywood, and solid wood
Custom speed, voltage, logo options
OEM solutions for machine builders
Inner protective foam case.
Outer plywood shipping box.
Optional: Custom-branded packaging available.
CE certification
EMC certification
LVD certification
quality certification
ROHS certification
UKCA certification
JST Company Outside
JST Workshop
JST Workshop
JST Workshop
JST Equipments
JST Equipments
Packing
Packing
Packing
Packing
Packing
A CNC drilling group unit is an integrated drilling head with multiple spindles, designed to perform efficient and precise drilling operations on CNC woodworking and panel processing machines.
The JGP-A12B4L8Z1 is mainly used on six-side drilling machines, CNC woodworking machines, and panel furniture production equipment for MDF, plywood, and solid wood.
It is suitable for woodworking materials such as MDF, particle board, plywood, laminated boards, and solid wood used in cabinet and furniture manufacturing.
A multi-spindle drilling unit reduces machining time, improves hole position consistency, minimizes vibration, and increases productivity compared to single-spindle drilling solutions.
Yes. Voltage, drilling configuration, and installation interfaces can be customized according to different CNC machine requirements and OEM applications.
Yes welcome warmly. No. 8 Hengcui Road, Henglin Town, Changzhou Economic Development Zone, Jiangsu Province, China.
