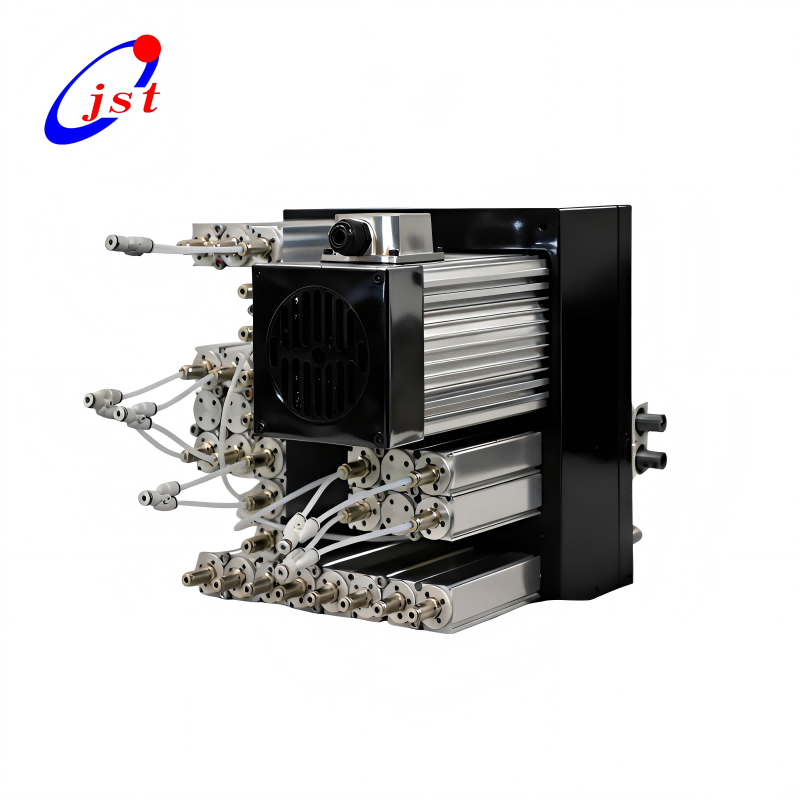

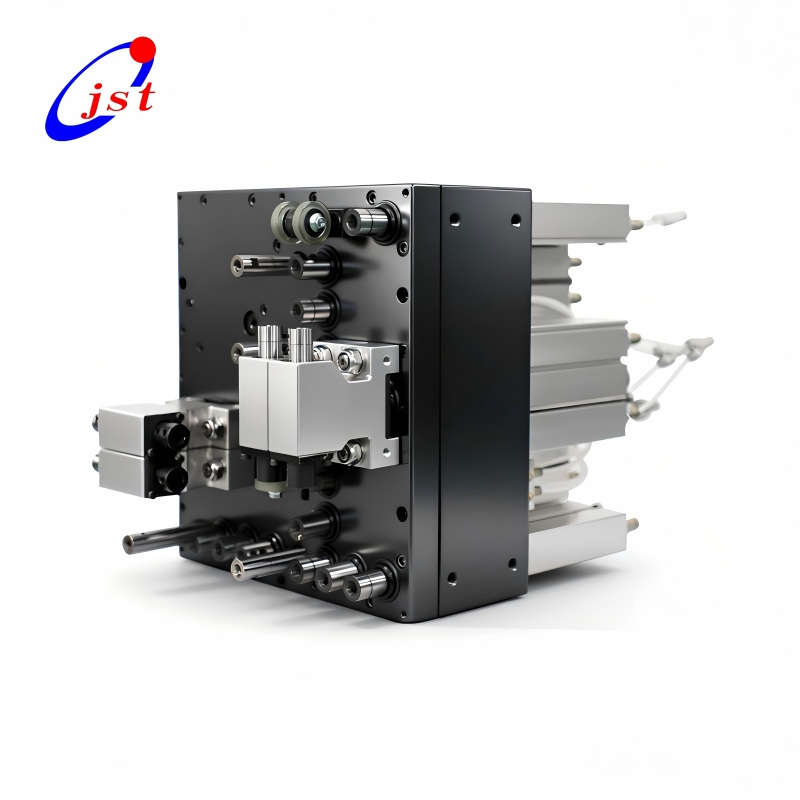

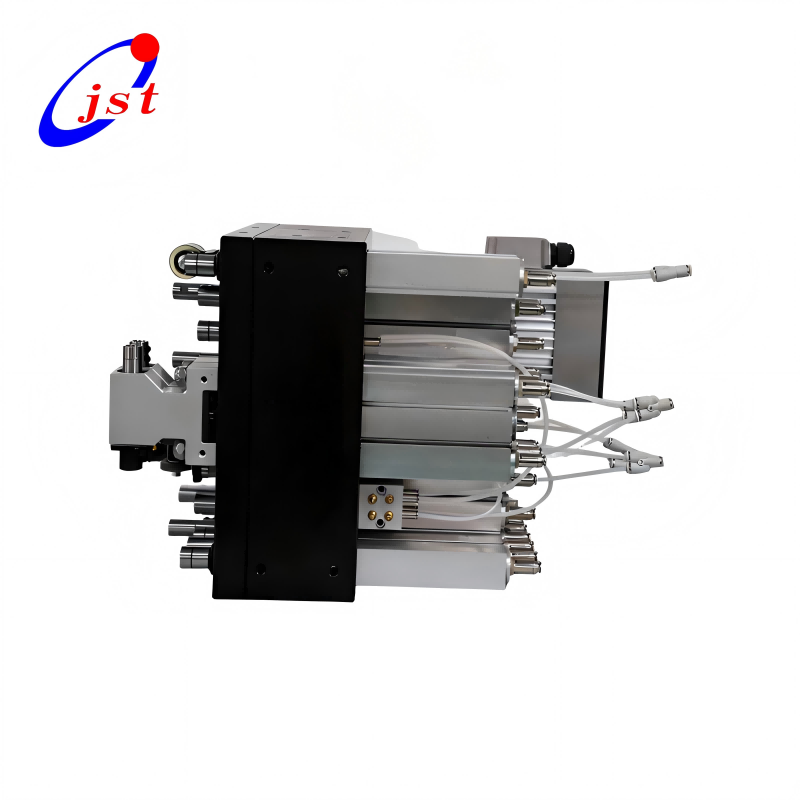

The JGP-A12B4L8 CNC Drilling Group Unit is a high-performance multi-function drilling head developed for six-side drilling machines and CNC woodworking equipment.
Equipped with a 2.2kW motor, this unit integrates 12 vertical drills, 4 horizontal drills, and 8 pushers, enabling complex multi-directional drilling operations in a single cycle.
Its customized reinforced base plate significantly enhances structural rigidity, while the precision gear transmission ensures low temperature rise, low noise, and stable operation. The accurate keyway matching between spindles and housing minimizes vibration and drill rebound, delivering excellent hole position accuracy and surface quality.
Designed for panel furniture production, cabinet manufacturing, and automated woodworking lines, the JGP-A12B4L8 provides an ideal solution for manufacturers seeking high efficiency, precision, and reliability.
JGP-A12B4L8
JST
380V/220V
50-60 HZ
2800-3400 RPM
| Quantity: | |
|---|---|
Product Description
The JGP-A12B4L8 CNC Drilling Group Unit is a high-performance multi-function drilling head developed for six-side drilling machines and CNC woodworking equipment.
Equipped with a 2.2kW motor, this unit integrates 12 vertical drills, 4 horizontal drills, and 8 pushers, enabling complex multi-directional drilling operations in a single cycle.
Its customized reinforced base plate significantly enhances structural rigidity, while the precision gear transmission ensures low temperature rise, low noise, and stable operation.
The accurate keyway matching between spindles and housing minimizes vibration and drill rebound, delivering excellent hole position accuracy and surface quality.
Designed for panel furniture production, cabinet manufacturing, and automated woodworking lines, the JGP-A12B4L8 provides an ideal solution for manufacturers seeking high efficiency, precision, and reliability.
12 vertical + 4 horizontal drilling spindles for multi-directional drilling
2.2kW industrial motor for stable and continuous operation
Integrated multi-spindle CNC drilling group design
Reinforced base plate improves rigidity and machining accuracy
Low vibration & low noise performance for high-quality drilling
High positional accuracy with precise keyway matching
Designed for six-side drilling machines and CNC woodworking systems
| Specification | Details |
|---|---|
| Model | JGP-A12B4L8 |
| Power | 2.2 KW |
| Voltage | 220 / 380 V |
| Current | 7.4 / 5.3 A |
| Speed Range | 2800-3400 RPM |
| Frequency | 50-60 Hz |
| Vertical Drilling Speed | 4500 rpm |
| Horizontal Drilling Speed | 4500 rpm |
| Vertical Drill Stroke | 68 mm |
| Cross Drilling Stroke | 68 mm |
| Drill Diameter | Ø10 mm |
| Number of Vertical Drills | 12 |
| Horizontal Drilling Quantity | 4 |
| Number of Pushers | 8 |
| Weight | 58 kg |
| Applications | Six-side CNC drilling machines, Woodworking CNC machining centers, Panel furniture production lines, Cabinet and wardrobe manufacturing, Automated drilling systems for MDF, plywood, and solid wood |

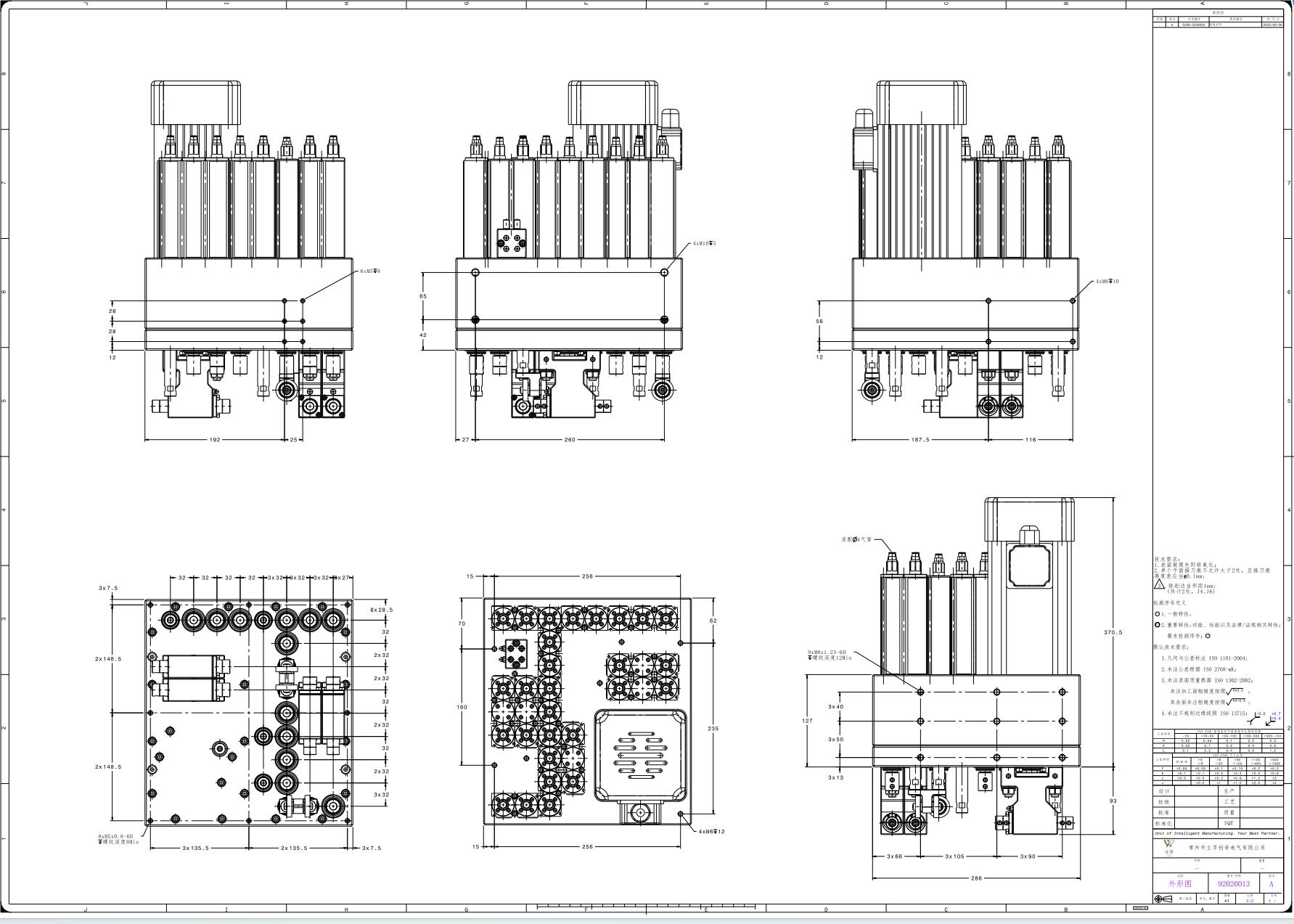

JGP-A12B4L8 CNC Drilling Group Unit 2.2kW Multi-Spindle Drilling Head for Woodworking Machines.pdf
Six-side CNC drilling machines
CNC woodworking machining centers
Panel furniture production lines
Cabinet and wardrobe manufacturing
Automated drilling systems for MDF, plywood, and solid wood
Custom speed, voltage, logo options
OEM solutions for machine builders
Inner protective foam case.
Outer plywood shipping box.
Optional: Custom-branded packaging available.
CE certification
EMC certification
LVD certification
quality certification
ROHS certification
UKCA certification
JST Company Outside
JST Workshop
JST Workshop
JST Workshop
JST Equipments
JST Equipments
Packing
Packing
Packing
Packing
Packing
A CNC drilling group unit is an integrated drilling head with multiple spindles, designed to perform efficient and precise drilling operations on CNC woodworking and panel processing machines.
The JGP-A12B4L8 is mainly used on six-side drilling machines, CNC woodworking machines, and panel furniture production equipment for MDF, plywood, and solid wood.
It is suitable for woodworking materials such as MDF, particle board, plywood, laminated boards, and solid wood used in cabinet and furniture manufacturing.
A multi-spindle drilling unit reduces machining time, improves hole position consistency, minimizes vibration, and increases productivity compared to single-spindle drilling solutions.
Yes. Voltage, drilling configuration, and installation interfaces can be customized according to different CNC machine requirements and OEM applications.
