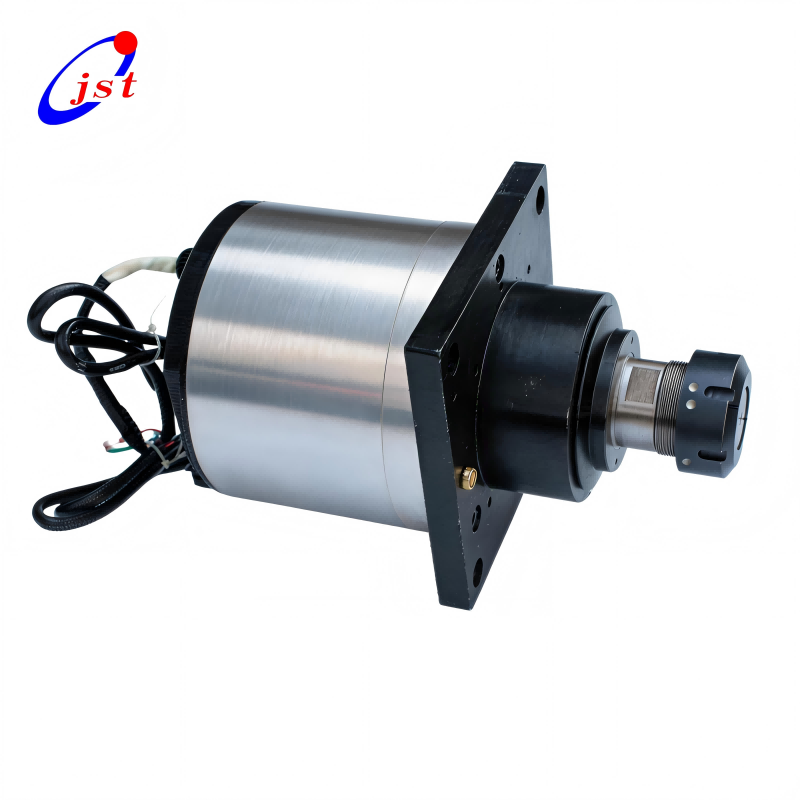

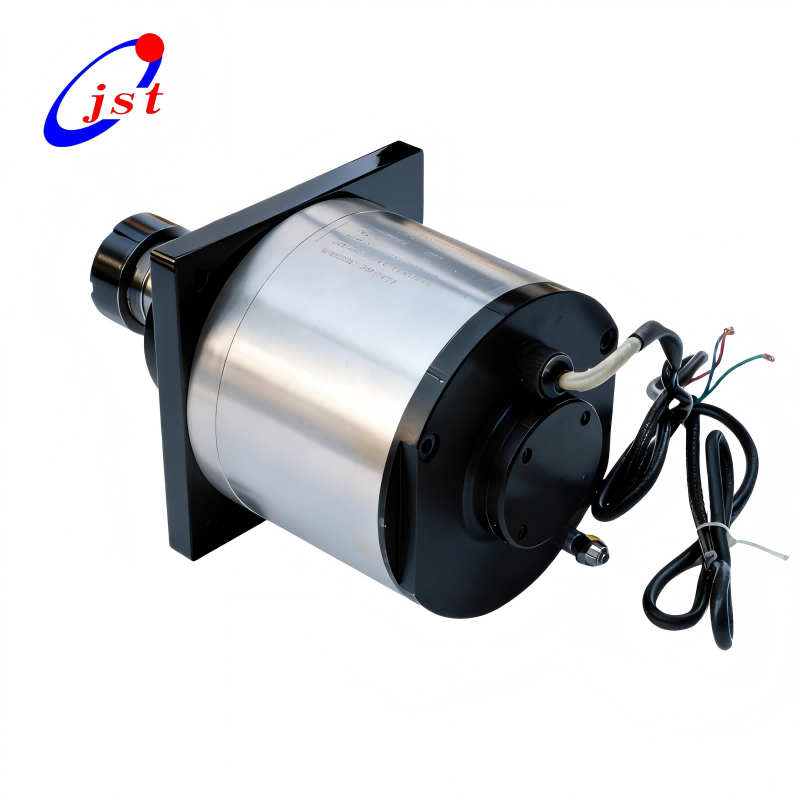

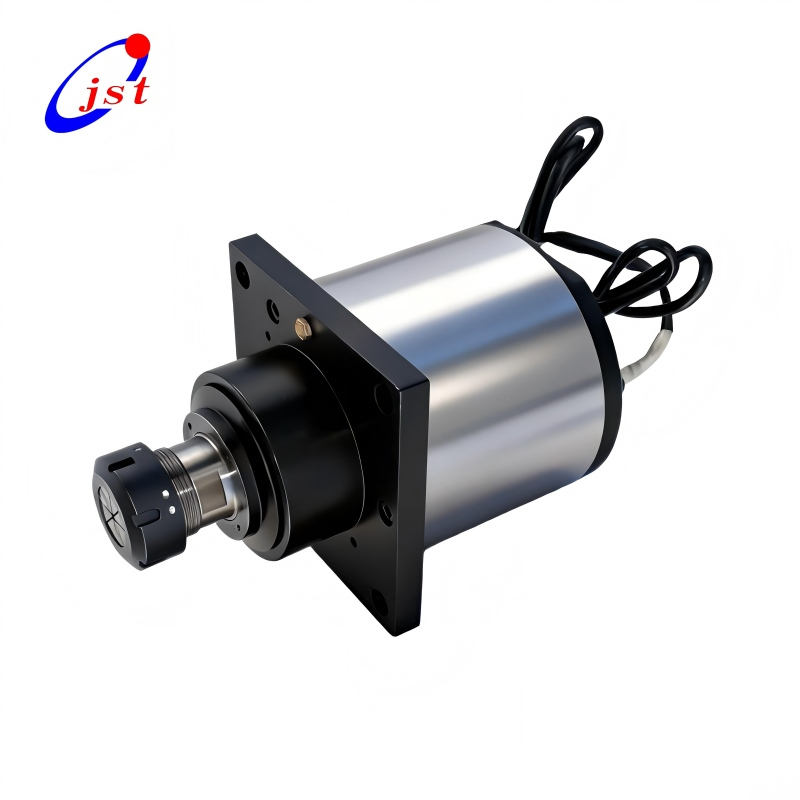

9.6kW Air-Cooled Multi-Head CNC Spindle Motor JGQ85-18Z/9.6 (ER40, 18000RPM)

Product Overview

The JGQ85-18Z/9.6 Air-Cooled Multi-Head Motorized Spindle is a high-performance CNC spindle designed for engraving machines, multi-head machining systems, and woodworking processing centers. With a 9.6kW rated power and 18000RPM high-speed performance, this spindle delivers stable torque, high precision, and reliable long-term operation.

The spindle adopts an air-cooling structure, eliminating the need for complex water-cooling systems and simplifying installation and maintenance. Equipped with high-quality ceramic ball bearings, the spindle ensures smooth rotation, reduced vibration, and extended service life even under continuous industrial operation.

Thanks to its ER40 tool interface, this spindle can support a wide range of cutting tools, making it suitable for wood, plastic, rubber, five-axis composite materials, and light metal processing. The multi-head configuration also allows different tools to be installed simultaneously, significantly improving machining efficiency and productivity.

This spindle is widely used in CNC engraving machines, woodworking routers, drilling systems, slot milling machines, and automated machining equipment.

Key Features and Advantages

High Power Output – 9.6kW motor provides strong and stable cutting performance

High Speed Operation – Maximum speed up to 18,000 RPM for precision machining

Air Cooling Design – No water pump required, easier installation and maintenance

ER40 Collet System – Compatible with multiple tool sizes for versatile applications

Ceramic Ball Bearings – Reduced friction, lower heat generation, longer service life

Multi-Tool Capability – Supports multiple tool configurations to improve productivity

Industrial Stability – Designed for long-term continuous CNC operation

9.6 KW Multi-Head Spindle Technical Specifications

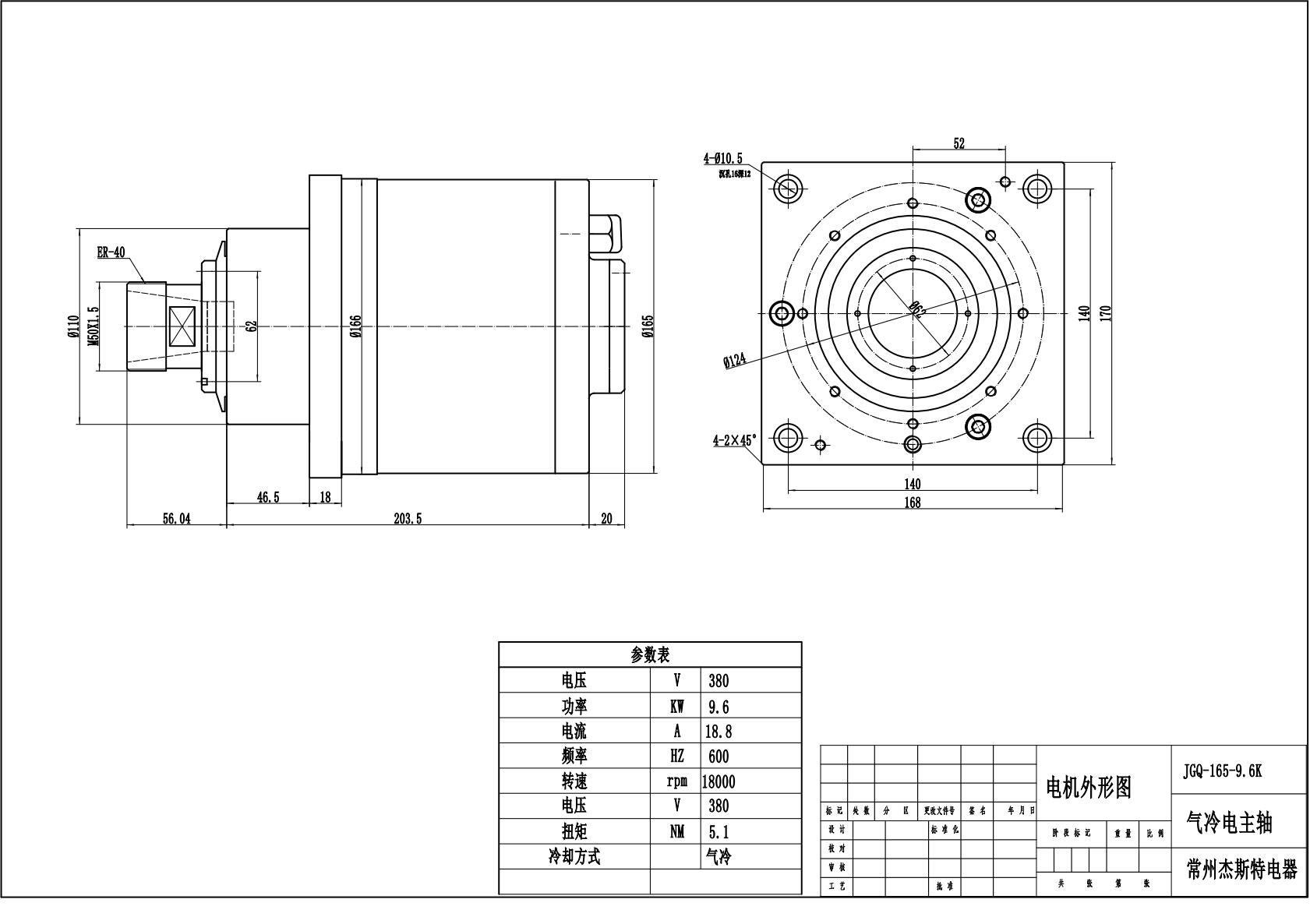

9.6 KW Multi-Head Spindle PDF Drawing Download

9.6kW Air-Cooled Multi-Head CNC Spindle Motor JGQ85-18Z-9.6 (ER40, 18000RPM).pdf

Certifications of JST Spindle

CE certification

EMC certification

LVD certification

quality certification

ROHS certification

UKCA certification

JST Spindle Motor Factory

JST Company Outside

JST Workshop

JST Workshop

JST Workshop

JST Equipments

JST Equipments

Packaging of JST Spindle

Packing

Packing

Packing

Packing

Packing

Applications

This JGQ85-18Z/9.6 spindle is suitable for a wide range of CNC machining applications, including:

CNC engraving machines

Woodworking CNC routers

Multi-head machining systems

Slot milling and drilling operations

Plastic and five-axis composite material machining

Rubber and soft material processing

Safety Tips for Daily Use and Maintenance of Spindle Motor

1.The electric spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor, and it will burn the spindle motor if the settings are not correct. (Therefore, the spindle motor must be connected to VFD at first.)

2.Before using water-cooled spindle motor, it shall ensure that cooling cycle system works normally. Please notice: the running under no cooling conditions is prohibited! The volume of cooling water is calculated as per 1 liter/minute, the minimum flow of cooling water is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.

3.The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30℃. The cooling medium shall carry out force cooling when the ambient temperature is higher than 30℃. The precision lathe requires the cooling liquid with a constant temperature of 20±2℃.

4.Important! The coolant temperature must be within 5℃ of the ambient temperature; ideally, the coolant temperature should be 5℃ lower than the ambient temperature. Otherwise, if the temperature difference is too large, condensation may form inside the electric spindle, leading to spindle damage.

5.If use water cooling machine, its temperature shall be within 22-25℃.

6.During storage and transport of the spindle motor, the status of high-speed grease inside the bearing will change. So, user shall run it at a low speed first by starting from the lowest speed of the spindle motor for 30 minutes and then 20 minutes for every 3000 rounds when they first time receiving spindle motors. Otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle motor is started directly at a high speed. During long term storage, the spindle motor shall run (at low speed) for 15-30 minutes once a week at least.

7.Before daily machining, the spindle motor shall be warmed up, run for 15-20 minutes when the machining speed is reached and then performs precise machining. It is better to stop the spindle motor for two hours every day in order to recover its mechanical fatigue and prolong its life time.

8.The spindle motor adopts vapor lock and the gas source shall not be used until it has passed oil-water separator and dry filter. The air pressure is 0.2-0.25Mpa and the filtering precision is 5μm, otherwise there will cause damages to the bearing. Therefore, a good oil-water separator is essential.

9.Collet, nut and inner taper hole shall be cleaned when installing blades on the spindle motor in order to avoid any impact on the precision. The blade handle shall be inserted into the collet more than 15mm.

10.No hammering the end cover of the spindle motor. No hammering the collet and blade head when removing blades. No shocking or colliding during transport, storage and using, especially pay attention to the end of the spindle motor.

11.The spindle motor shall run in designated direction. (We will indicate the direction with an arrow.)

12.The spindle motor shall be installed and fixed according to the relevant drawings and instructions.

What is a Spindle Motor?

Spindle motor is also called high-speed electric spindle motor, refers to the revolution of a more than 10000 RPM AC motor. It has the advantages of fast speed, small size, lightweight, low material consumption, low noise, and low vibration, mainly used in wood, aluminum, stone, hardware, glass, PVC, and other industries.

Due to its wide application and meticulous work, fast speed, and excellent processing quality, making another ordinary motor can not meet the technical requirements of the spindle motor. Spindle motor plays an important role in the industrial production process, so it is particularly popular all over the world.
