CNC Spindle Tool Holders – ISO20, ISO25, ISO30, BT30, BT40, BBT30 & HSK Tooling Systems

Product Overview

Our CNC Spindle Tool Holders are designed for high-speed and high-precision machining applications, providing reliable tool clamping performance for a wide range of CNC spindle motors and machining centers. Available in multiple international standards including ISO20, ISO25, ISO30, BT30, BT40, BBT30, and HSK-E25, these tool holders ensure excellent rigidity, accuracy, and balance during machining operations.

Manufactured from premium alloy steel and precision ground for superior concentricity, these spindle tool holders are suitable for demanding industrial applications such as woodworking, metalworking, engraving, milling, drilling, and high-speed CNC machining.

Designed for compatibility with automatic tool change (ATC) spindle systems, our tool holders provide stable performance at high RPMs while minimizing vibration and tool runout. Whether used in CNC routers, machining centers, or engraving machines, these holders help improve machining efficiency, surface finish quality, and overall productivity.

Available Tool Holder Types

We supply a complete range of CNC spindle tooling systems, including:

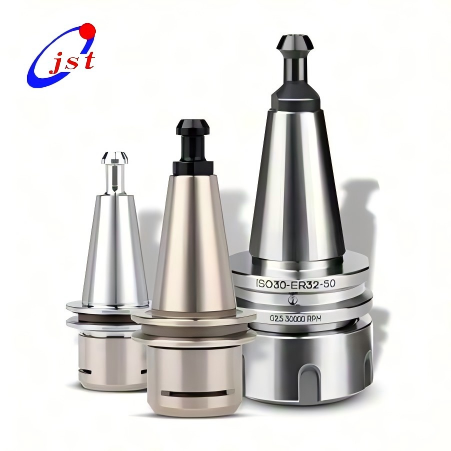

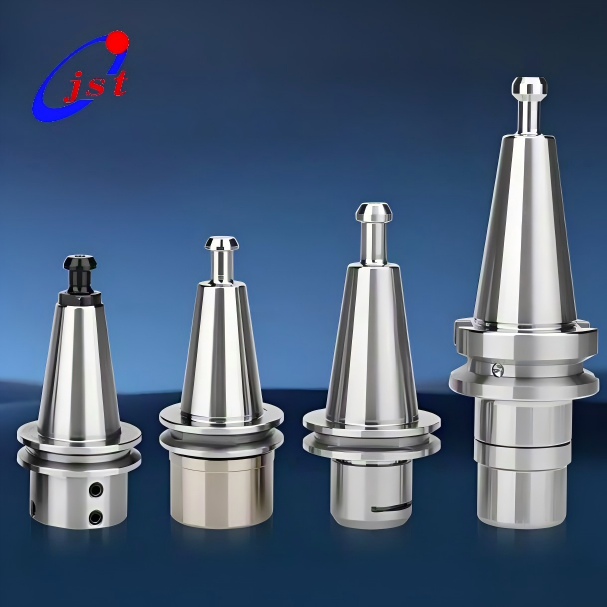

ISO20 Tool Holder

ISO25 Tool Holder

ISO30 Tool Holder

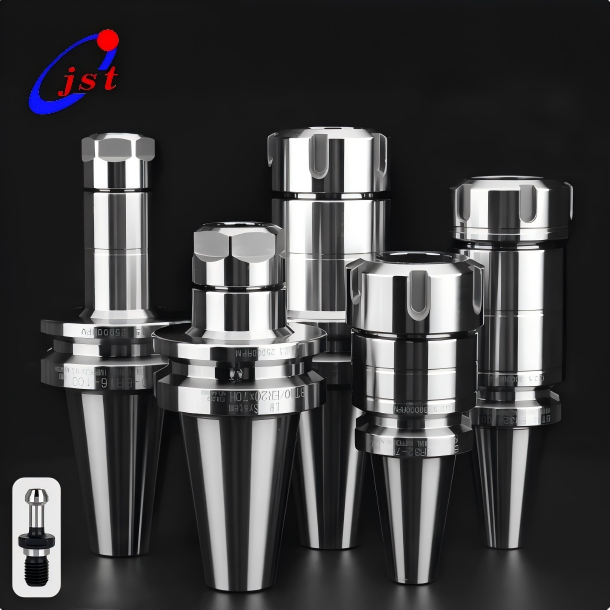

BT30 Tool Holder

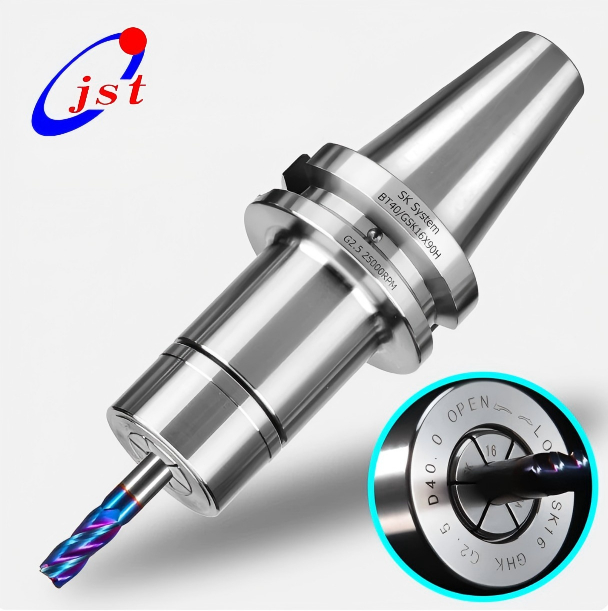

BT40 Tool Holder

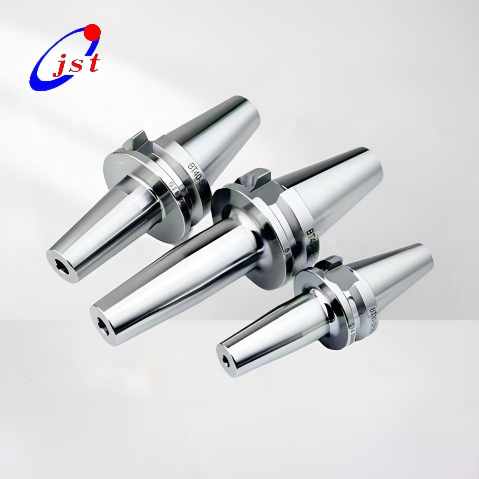

BBT30 Dual Contact Tool Holder

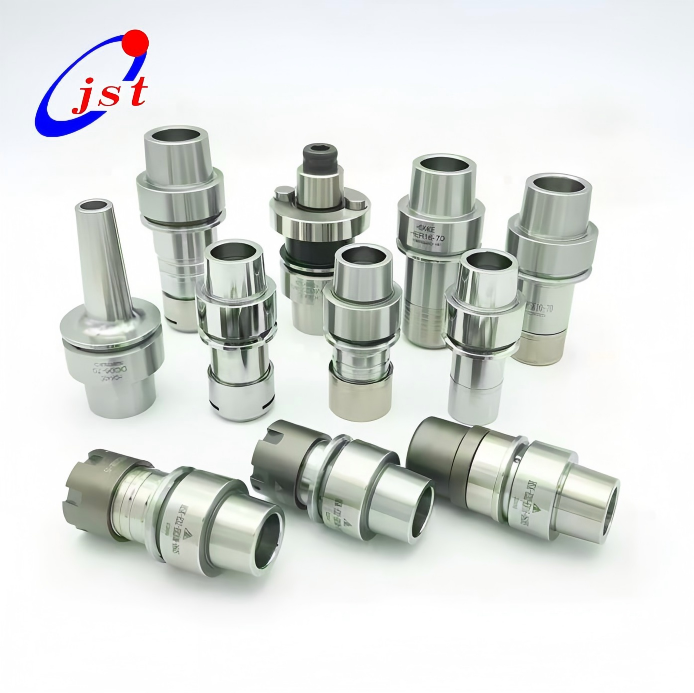

HSK-E25 High-Speed Tool Holder

Custom tooling configurations are also available upon request.

Key Features

High Precision Manufacturing – Low runout for superior machining accuracy

Excellent Dynamic Balance – Stable operation at high spindle speeds

Strong Clamping Force – Reliable tool holding during heavy cutting operations

ATC Compatible – Suitable for automatic tool change spindle systems

Wide Compatibility – Supports ISO, BT, BBT, and HSK spindle standards

Durable Alloy Steel Construction – Heat-treated for long service life

Optimized for High-Speed CNC Machining – Reduced vibration and improved surface finish

Applications

Our CNC spindle tool holders are widely used in:

CNC machining centers

ATC CNC routers

Woodworking CNC machines

Metal milling machines

High-speed engraving machines

Precision drilling and cutting systems

Five-axis CNC machining applications

Benefits of Using High-Quality Tool Holders

Using precision CNC tool holders can significantly improve machining performance:

Better machining accuracy

Reduced spindle vibration

Improved surface finish quality

Longer cutting tool lifespan

Faster and more stable tool changes

Increased productivity and machining efficiency

Certifications of JST Spindle

JST Spindle Motor Factory

Packaging of JST Spindle

Frequently Asked Questions (FAQ)

What is the difference between BT30 and ISO30 tool holders?

BT30 tool holders use a symmetrical flange design for higher stability and better automatic tool changing performance, while ISO30 holders are more commonly used in lighter CNC applications.

Are your tool holders suitable for ATC spindle motors?

Yes. Our ISO, BT, BBT, and HSK series tool holders are compatible with automatic tool change (ATC) spindle systems.

Which tool holder is best for high-speed CNC machining?

For high-speed machining applications, HSK-E25 and BBT30 tool holders provide excellent rigidity, precision, and balance performance.

Can you provide customized tool holders?

Yes. We support OEM customization based on spindle interface, dimensions, balancing requirements, and machining applications.

Safety Tips for Daily Use and Maintenance of Spindle Motor

1.The electric spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor, and it will burn the spindle motor if the settings are not correct. (Therefore, the spindle motor must be connected to VFD at first.)

2.Before using water-cooled spindle motor, it shall ensure that cooling cycle system works normally. Please notice: the running under no cooling conditions is prohibited! The volume of cooling water is calculated as per 1 liter/minute, the minimum flow of cooling water is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.

3.The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30℃. The cooling medium shall carry out force cooling when the ambient temperature is higher than 30℃. The precision lathe requires the cooling liquid with a constant temperature of 20±2℃.

4.Important! The coolant temperature must be within 5℃ of the ambient temperature; ideally, the coolant temperature should be 5℃ lower than the ambient temperature. Otherwise, if the temperature difference is too large, condensation may form inside the electric spindle, leading to spindle damage.

5.If use water cooling machine, its temperature shall be within 22-25℃.

6.During storage and transport of the spindle motor, the status of high-speed grease inside the bearing will change. So, user shall run it at a low speed first by starting from the lowest speed of the spindle motor for 30 minutes and then 20 minutes for every 3000 rounds when they first time receiving spindle motors. Otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle motor is started directly at a high speed. During long term storage, the spindle motor shall run (at low speed) for 15-30 minutes once a week at least.

7.Before daily machining, the spindle motor shall be warmed up, run for 15-20 minutes when the machining speed is reached and then performs precise machining. It is better to stop the spindle motor for two hours every day in order to recover its mechanical fatigue and prolong its life time.

8.The spindle motor adopts vapor lock and the gas source shall not be used until it has passed oil-water separator and dry filter. The air pressure is 0.2-0.25Mpa and the filtering precision is 5μm, otherwise there will cause damages to the bearing. Therefore, a good oil-water separator is essential.

9.Collet, nut and inner taper hole shall be cleaned when installing blades on the spindle motor in order to avoid any impact on the precision. The blade handle shall be inserted into the collet more than 15mm.

10.No hammering the end cover of the spindle motor. No hammering the collet and blade head when removing blades. No shocking or colliding during transport, storage and using, especially pay attention to the end of the spindle motor.

11.The spindle motor shall run in designated direction. (We will indicate the direction with an arrow.)

12.The spindle motor shall be installed and fixed according to the relevant drawings and instructions.

What is a Spindle Motor?

Spindle motor is also called high-speed electric spindle motor, refers to the revolution of a more than 10000 RPM AC motor. It has the advantages of fast speed, small size, lightweight, low material consumption, low noise, and low vibration, mainly used in wood, aluminum, stone, hardware, glass, PVC, and other industries.

Due to its wide application and meticulous work, fast speed, and excellent processing quality, making another ordinary motor can not meet the technical requirements of the spindle motor. Spindle motor plays an important role in the industrial production process, so it is particularly popular all over the world.
